Standard features

ABS enclosure with molded-in cable fittings
Connect two, three or four single load cells

Specifications

Cable Fittings: Five water tight nylon compression fittings, 0.210 × 0.280 in
Enclosure: ABS with molded through-fittings, sealed six-screw lid
Connectors: Spring clamp screwless, 12 to 28 AWG
Trimming: Individual cell, signal trim
Temperature: Operating: 0 °F to 122 °F (-18 °C to 50 °C)
Potentiometers: 100,000 ohm, 25-turn cermet
Circuit Board: 3.8 × 2.3 in, with conformal coating
Warranty: One-year limited

Models & part numbers

Available configurations.

Part / model	Description

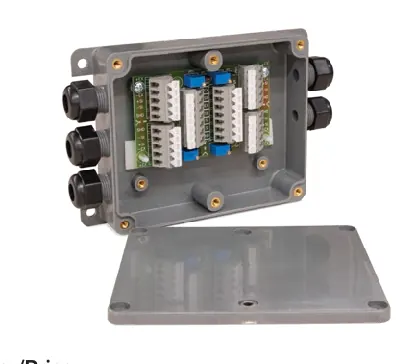

73428	EL204 junction box
88958	Board only

Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 596. Specifications are subject to change without notice.
