Rice Lake · Indicators / Controllers

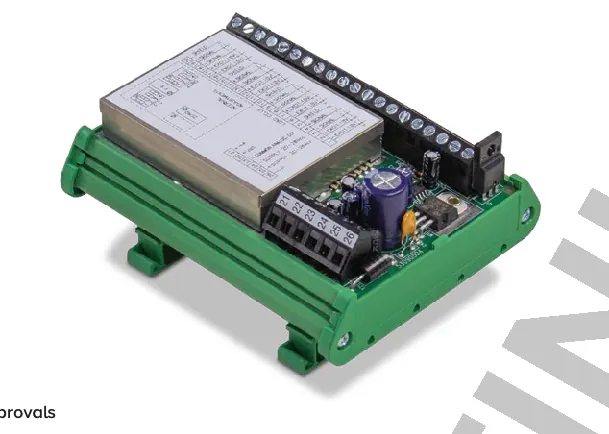

SCT-3300
Signal Conditioning Transmitter
Standard features
- Powers up to six (350 ohm) load cells in parallel
- Analog amplifier and transmitter
- Analog output: 0-20 mA, 4-20 mA, 0-10 V
- Mounting on Omega/DIN rail for back panel or junction box
Specifications
- Power
- Input: 20 to 28 VDC
- Power Consumption
- 8 W
- Excitation Voltage
- 10 VDC, 170 mA, 6 × 350 ohm load cells
- Analog Signal Input Range
- 3.5 to 24 mV
- Analog Signal Sensitivity
- 0.3 µV/graduation minimum 1.0 µV/graduation recommended
- A/D Sample Rate
- 300 Hz
- System linearity
- ± 0.01% full scale
- Analog Output (if equipped)
- Opto isolated 0-20 mA, 4-20 mA (max 300 ohm) 0-10 VDC (min 10,000 ohm)
- Dimensions
- (L × W × H) 4.56 × 3.72 × 2.4 in (114 × 93 × 60 mm)
- Temperature
- Operating: 14 °F to 122 °F (-10 °C to 50 °C)
- Humidity
- 85% non-condensing
- Rating/Material
- DIN rail mount: NEMA Type 1
- Weight
- 0.5 lb (0.2 kg)
- Warranty
- One-year limited
- Approvals
- UKCA Marked
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 188725 | Indicator, SCT-3300 four load cell input with Analog Output 1 lb |
Options & accessories (2)
| 88792 | 12 VDC 1.2 A DIN rail mount power supply 1 lb |
| 119244 | 24 VDC 1.3 A DIN rail mount power supply 1 lb |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 540. Specifications are subject to change without notice.
