Rice Lake · Indicators / Controllers

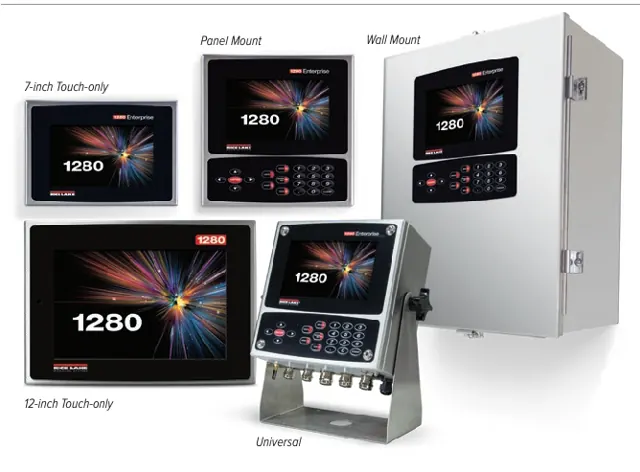

1280 Enterprise™ Series
Programmable Digital Weight Indicator
Standard features
- Customizable color touchscreen with graphical user interface
- User-defined softkeys, icons and graphics
- Tactile keypad for scale operations, numeric entry and navigation
- On-screen keyboard available during entry mode (or external keyboard)
- Built-in web server for remote access, systems integration and data monitoring
- Multi-language operation and text entry
- Supports eight scales within five different kinds:
- Analog load cell, multi-range/interval weighing
- Total scale summing
- Serial input scales
- iQUBE³ and iQUBE² scales
- Program scales
- Six smart card slots for additional scale channels, serial ports, digital inputs and outputs, analog outputs and protocol interfaces
- iRite™ Programming Software
Specifications
- Power
- AC voltages: 100 to 240 VAC; 50/60 Hz DC voltages: 11 to 30 VDC
- Power Consumption
- 60W
- Excitation Voltage
- 10 VDC (±5 VDC) 16 × 350 ohm or 32 × 700 ohm load cells per A/D card
- Analog Signal Input Range
- -60 mV to 60 mV
- Analog Signal Sensitivity
- 0.3 µV/graduation minimum at 7.5 Hz to 120 Hz 1.0 µV/graduation recommended
- A/D Sample Rate
- 7.5 to 960 Hz, software selectable
- Resolution
- Internal: 8,000,000 counts Display: 1,000,000 System Linearity ± 0.01% full scale
- Digital I/O
- Eight I/O channels on CPU board Optional 24-channel I/O expansion boards
- Communication Ports
- Port 1 and 2 RS-232: Full duplex RS-422/485: Half or full duplex Baud rate: 1200 to 115200 Port 3: USB 2.0 Device (Micro) USB host: (2) Type A connectors max 500 mA Ethernet: Wired 10/100 Auto-MDX Ethernet: Wireless 802.11 b/g/n 2.4GHz
- Onboard
- Selectable filters: Three stage, Adaptive or Damping Embedded Linux® OS 8 GB eMMC (system use) 1 GB DDR3 RAM 460 MB onboard database (SQLite) storage Up to 32 GB micro-SD card (sold separately)
- Display
- Seven-inch, 800 × 480 pixel, 500 or 1,000 NIT Twelve-inch, 1280 × 800 pixel, 1,500 NIT
- Keys/Buttons
- 22-key membrane panel, tactile buttons, on-screen keyboard for text and numeric entry, USB port for flash drive, keyboard and printer
- Temperature
- Certified: 14 °F to 104 °F (-10 °C to 40 °C) Operating: -4 °F to 131 °F (-20 °C to 55 °C)
- Rating/Material
- Universal: IP69K Wall Mount: IP66 Panel Mount: IP69K, NEMA Type 4X and 12 Stainless steel 304 enclosure
- Weight
- Universal enclosure: 11 lb (4.9 kg) Panel mount enclosure: 8 lb (3.6 kg) Wall mount enclosure: 23 lb (10.4 kg) Panel mount 7 in touch-only: 7 lb (3.1 kg) Panel mount 12 in touch-only: 10 lb (4.5 kg)
- Warranty
- Two-year limited
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 171427 | † 1280 Universal 115 VAC 500 NIT |
| 171441 | †† 1280 Universal 100 to 240 VAC 500 NIT |
| 171662 | † 1280 Universal 115 VAC 500 NIT |
| 172188 | †† 1280 Universal 100 to 240 VAC 500 NIT |
| 171663 | 1280 Panel Mount 100 to 240 VAC 500 NIT |
| 172186 | 1280 Panel Mount 100 to 240 VAC 500 NIT |
| 173673 | † 1280 Wall Mount 115 VAC 500 NIT |
| 174143 | 1280 Wall Mount 100 to 240 VAC 500 NIT |
| 174144 | † 1280 Wall Mount 115 VAC 500 NIT |
| 174145 | †† 1280 Wall Mount 100 to 240 VAC 500 NIT |
| 172184 | † 1280 Wall Mount 115 VAC 1,000 NIT |
| 172185 | †† 1280 Wall Mount 100 to 240 VAC 1,000 NIT |
| 206563 | † 1280 Wall Mount 115 VAC 1,000 NIT |
| 172187 | †† 1280 Wall Mount 100 to 240 VAC 1,000 NIT |
| 186465 | 1280 Touch-only 12 in 100 to 240 VAC 1,500 NIT |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 517. Specifications are subject to change without notice.
