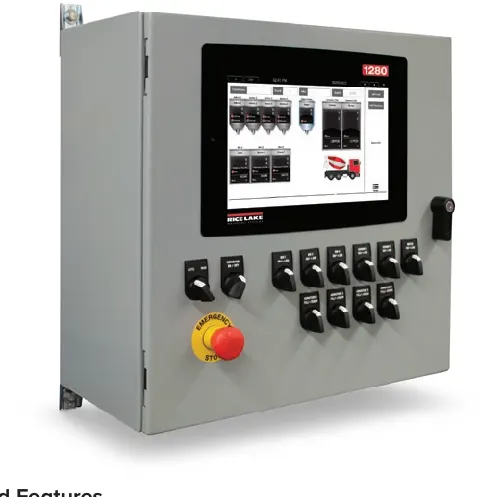

1280 FlexWeigh Systems Concrete Batcher
Decumulative/Accumulative Batcher
Standard features
- Powered by 1280 Enterprise™ Series indicator
- Large color touchscreen display
- Remote batching through web server integration
- Front panel control switches and emergency stop
- Automatic or manual batching modes
- Configurable from two to five scales (one to two cement scales, and one to three material bins)
- Up to four admixes (bottled or direct)
- Manual entry of moisture compensation percentage
- Metered water controlled by onboard DIO
- Import/export databases via USB, Revolution® or Interchange software
- Configurable batch transaction ticket
- Storage for 1,000 transactions, 1,000 mix designs and 500 customers
- Available with English or Spanish operation and in imperial or metric measurements
Specifications
- Power
- 100 to 240 VAC; 50/60 Hz
- Excitation Voltage
- 10 VDC (± 0.5 Volts) 16 × 350 ohm or 32 × 700 ohm load cells per A/D card
- Analog Signal Input Range
- -60 mV to 60 mV
- Analog Signal Sensitivity
- 0.3 µV/graduation minimum at 7.5 to 120 Hz 1.0 µV/graduation recommended
- A/D Sample Rate
- 7.5 to 960 Hz, software selectable
- Resolution
- Internal: 8,000,000 counts Display: 1,000,000
- System Linearity
- ± 0.01% full scale
- Communication Ports
- Port 1 & 2: Full duplex RS-232 with CTS/RTS, RS-422/485 Baud Rate: 1200 to 115200 Port 3: USB 2.0 Device (Micro) USB Host: (2) Type A Connectors max 500 mA Ethernet: Wired 10/100 Auto-MDX Ethernet: Wireless 802.11 b/g/n 2.4 GHz
- Onboard
- Selectable filters: Three stage, adaptive or damping Embedded Linux® OS 8 GB eMMC (system use) 1 GB DDR3 RAM 460 MB onboard database (SQLite) storage Up to 32 GB micro SD card
- Display
- 12-inch, 1280 × 800 pixel, 1,500 NIT
- Temperature
- Certified: 14 °F to 104 °F (-10 °C to 40 °C) Operating: -4 °F to 131 °F (-20 °C to 55 °C)
- Rating/Material
- Painted mild steel enclosure NEMA Type 4; IP66
- Dimensions
- 20 × 20 × 8 in
- Warranty
- Two-year limited
- EMC Immunity
- EN 50082 Part 2 IEC EN 61000-4-2, 3, 4, 5, 6, 8, 11
