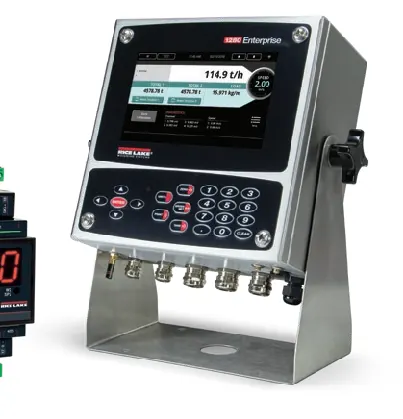

1280 with SCT-4XD Integrator

Specifications

Power

100 to 240 VAC; 50/60 Hz 11 to 30 VDC

Power Consumption

60 W

Excitation Voltage

10 VDC (±5 VDC) 16 × 350 ohm or 32 × 700 ohm load cells per A/D card

Analog Signal Input Range

-60 mV to 60 mV

Analog Signal Sensitivity

0.3 µV/graduation minimum at 7.5 Hz to 120 Hz 1.0 µV/graduation recommended

A/D Sample Rate

7.5 to 960 Hz, software selectable

Resolution

Internal: 8,000,000 counts Display: 1,000,000 System Linearity ± 0.01% full scale

Digital I/O

Eight I/O channels on CPU board Optional 24-channel I/O expansion boards

Communication Ports

Port 1 and 2: Full duplex RS-232 with CTS/RTS, RS-422/485 Baud rate: 1200 to 115200 Port 3: USB 2.0 Device (Micro) USB host: (2) Type A connectors max 500 mA Ethernet: Wired 10/100 Auto-MDX Ethernet: Wireless 802.11 b/g/n 2.4GHz

Onboard

Selectable filters: Three stage, Adaptive or Damping Embedded Linux® OS 8 GB eMMC (system use) 1 GB DDR3 RAM 460 MB onboard database (SQLite) storage Up to 32 GB micro -SD card (sold separately)

Display

Seven-inch, 800 × 480 pixel, 500 or 1,000 NIT

Keys/Buttons

22-key membrane panel, tactile buttons, on-screen keyboard for text and numeric entry, USB port for flash drive, keyboard and printer

Temperature

Certified: 14 °F to 104 °F (-10 °C to 40 °C) Operating: -4 °F to 131 °F (-20 °C to 55 °C)

Rating/Material

Universal: IP69K

EMC Immunity

10 V/m

Weight

Universal enclosure: 11 lb (4.9 kg)
