Standard features
- Large LCD display
- Enameled tubular steel frame
- Four heavy-duty caster wheels
- Swing-up arms
- Side-folding footrests
- Molded seat
- Motiontrap™ movement compensation technology
- Unit of measure toggle or locking
- EMR capable
- USB data communication port
- Tare function
- Hold function
- Body mass index (BMI) function
- Factory calibrated
Specifications
- Capacity
- 660 × 0.2 lb (300 × 0.1 kg)
- Power
- 9 VDC, provided by six AA alkaline batteries (included) or AC adapter (optional)
- Battery Type
- Six AA alkaline (included)
- Battery Use
- 25 hours continuous use with batteries Automatic power-off can be configured
- Display
- Five-digit LCD display, 0.75 in (1.9 cm) digit height
- Warranty
- Two-year limited F F A A
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|

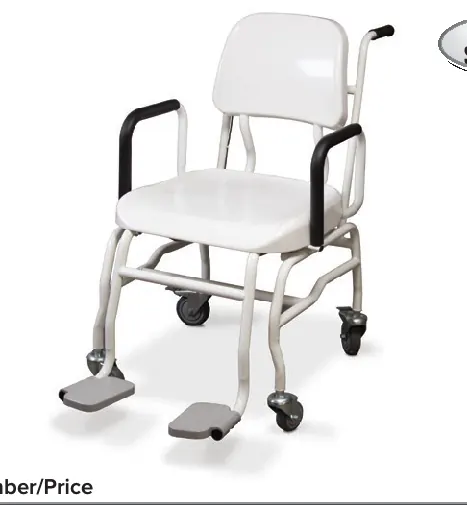

| 166644 | 560-10-1 660 × 0.2 lb (300 × 0.1 kg) |
Options & accessories (2)
| 133077 | † 9VDC adapter, 100-240V, NEMA 1-15 Plug, cULus power supply |
| 102508 | 9VDC adapter, 100-240V, CEE 7/16 Plug, medical grade power supply |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 476. Specifications are subject to change without notice.
