Standard features
- Converts serial data such as bar code reader or scale into keyboard input to software program
- Works with PC and MAC® computers
- Requires no driver installation (identifies itself as additional HID keyboard)
- Cable draws power from USB port (no external power supply needed)
- Test cable to be connected with adapter scale cable or connector
- WPAN version allows connection to devices such as iPad® or Android® tablets and phones
Specifications
- Power
- USB power, no external power supply
- Baud Rate
- 9600
- Color
- Black
- Cable Length
- 74 in (1,880 mm)
- Bluetooth Cable Length
- 16 in (406 mm)
- Host
- PC and MAC compliant
- Connection
- DB9 male connector
- Pin Out
- Pin 2: RX Pin 3: TX Pin 5: Ground USB-A
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 119919 | RS-232/USB serial cable 1 lb |

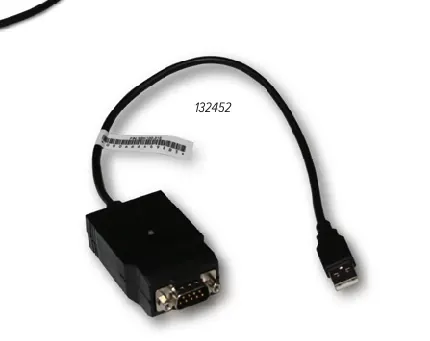

| 132452 | RS-232/USB serial cable plus Bluetooth ® 1 lb |
Options & accessories (4)
| 119064 | Slimline null modem, gender changer DB9 female to female |
| 22436 | Blunt-end to DB9 female, straight cable |
| 50749 | DB9 female to DB9 female |
| 130789 | Null model DB9 adapter female to male |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 134. Specifications are subject to change without notice.
