Standard features
- Stable, accurate and fast operation, ensuring optimal weighing results
- Color touchscreen with 4.3 in (109 mm) display size
- Dual USB ports and RS-232 provide connectivity options
- Space-saving, top-mounted draft shield on analytical models
- Real-time clock with GLP/GMP data
- Below minimum sample weight indication with minimum weight feature
- AutoCal™
Specifications
- Weighing Units
- Milligram, gram, kilogram, ounce, pound, carat, pennyweight, troy ounce, grain, newton, Hong Kong tael, Singapore tael, Taiwan tael, momme, tical, baht, mesghal, tola, custom
- Operating Modes
- Counting, weighing, dynamic weighing, checkweighing, percent weighing, totalization, display hold, density determination, formulation
- Power
- 100 to 240 VAC, 0.3 A, 50/60 Hz AC adapter
- Class
- AX224N: I (0.001 g) AX223N/E: II (0.01 g) AX423N/E and AX523N/E: II (0.01 g) AX622N/E, AX1502N/E, AX2202N/E, AX4202N/E: II (0.1 g) AX8201N/E: II (1 g)
- Stabilization Time
- <1.5 seconds
- Calibration Weight
- 224N , AX223 and AX223N/E: 200 g AX423: 400 g AX523: 500 g AX622: 600 g 1502N/E: 1500 g 2202N/E: 2000 g 4202N/E: 4000 g 8201N/E: 8000 g
- Temperature
- Operating: 10 °C to 30 °C (50 °F to 86 °F)
- Est. Weight
- AX224N: 17.2 lb (7.8 kg) AX223N/E: 12.8 lb (5.8 kg) AX423N/E and AX523N/E: 12.8 lb (5.8 kg) AX622N/E, AX1502N/E, AX2202N/E, AX4202N/E: 14.4 lb (6.5 kg) AX8201N/E: 12.6 lb (5.7 kg)
- Warranty
- Two-year limited
- Return Policy
- OHAUS standard policy - restock fee may apply
- Approvals
- NTEP 14-082A4 Measurement Canada: AM-5957 Measurement Canada Approved
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| AX223N/E | 220 g 0.001 g 0.001 g 0.2 mg |
| AX423N/E | 420 g 0.001 g 0.001 g 0.002 mg |
| AX523N/E | 520 g 0.001 g 0.001 g 0.002 mg |
| AX622N/E | 620 g 0.01 g 0.001 g 0.002 mg |
| AX2202N/E | 2,200 g 0.01 g 0.01 g 0.002 mg |
| AX4202N/E | 4,200 g 0.01 g 0.01 g 0.002 mg |
| AX8201N/E | 8,200 g 0.1 g 0.1 g 0.02 mg |
Options & accessories (4)
| 191879 | 83021085 USB cable, Type A to B |
| 191875 | 80850043 Security device (laptop lock) |
| 77712 | 80500524 25-pin RS-232 cable (PC) |
| 70406 | 80500525 9-pin RS-232 cable (PC) |

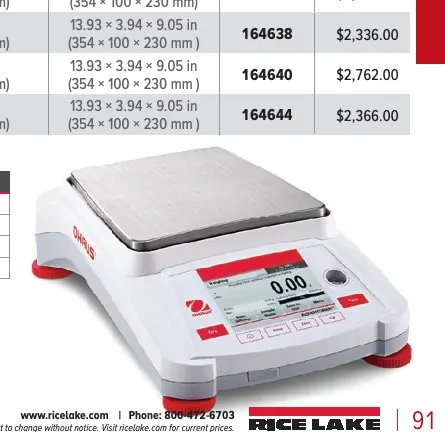

Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 91. Specifications are subject to change without notice.
