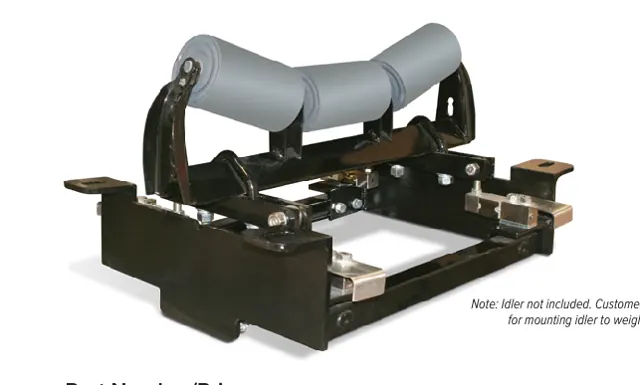

Standard features

Fits standard conveyors using CEMA-C idlers
No moving parts
Four shear laterally opposed shear beam load cells
Fabricated with heavy gauge steel
Minimal conveyor modifications required for installation

Specifications

Conveyor Widths: 18 to 72 in
Capacity: Up to 10,000 tons per hour
Belt Speed: Up to 600 feet per minute
Accuracy Guidelines: Guidelines assume clean belt with automatic tensioning system. Accuracy guidelines are typical. System accuracy may vary depending on environmental influences.
System Accuracy: Single to two idler system: 0.5% to 1% total error

Models & part numbers

Available configurations.

Part / model	Description
94968	24 in weigh frame 18 in 500 lb
95208	30 in weigh frame 24 in 500 lb
95209	36 in weigh frame 30 in 500 lb
95210	42 in weigh frame 36 in 500 lb
95212	54 in weigh frame 48 in 500 lb
96717	60 in weigh frame 54 in 1,000 lb
96718	66 in weigh frame 60 in 1,000 lb
96719	72 in weigh frame 66 in 1,000 lb
110839	24 in weigh frame 18 in 500 lb
105246	30 in weigh frame 24 in 500 lb
110841	36 in weigh frame 30 in 500 lb
110842	42 in weigh frame 36 in 500 lb
110843	48 in weigh frame 42 in 500 lb
110844	54 in weigh frame 48 in 500 lb
110845	60 in weigh frame 54 in 500 lb
110846	66 in weigh frame 60 in 500 lb
110847	72 in weigh frame 66 in 500 lb
126282	V-bolt for 3 in angle iron base idlers set of 2

Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 148. Specifications are subject to change without notice.
