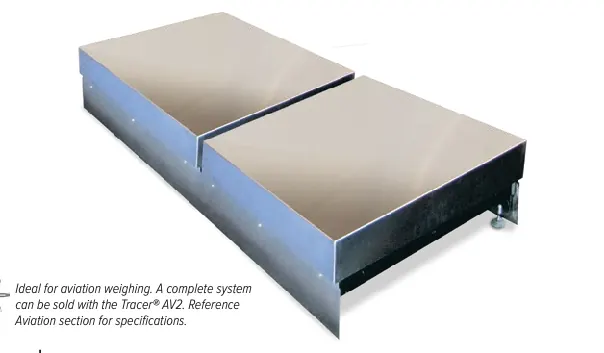

Standard features
- Two heavy-duty scales designed mild steel base construction with 304 stainless steel cover
- Polyurethane rubber leveling feet with stainless steel stems
- Load cell comes standard with DB-9 connector for connecting to Tracer AV2
- Front and back kick plates for two side-by-side scales
Specifications
- Load Cell
- IP67, environmentally sealed Aluminum
- Output Impedance
- 350 ohm
- Maximum Overload
- 200%
- Overload Protection
- Five-point, independently adjusted
- Cable Length
- 10 ft (3 m)
- Temperature
- Compensated: 14 °F to 104 °F (-10 °C to 40 °C)
- Warranty
- Two-year limited
- Approvals
- NTEP 06-010, Class III 5,000 d Measurement Canada AM-5625 Load cell is cFMus approved
