Standard features
- Mild steel base construction
- 304 stainless steel cover

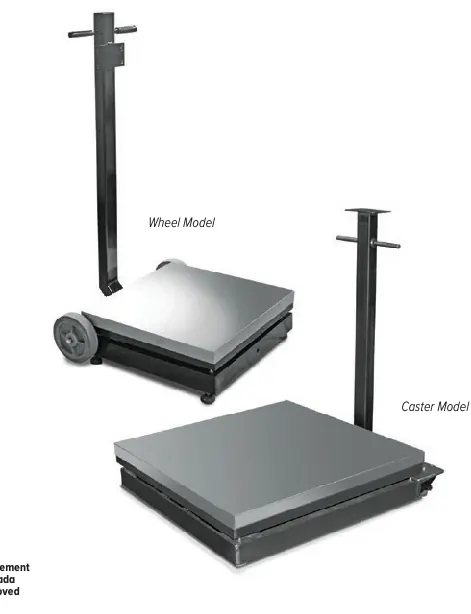

- Indicator stand for mounting 380 Synergy Wheel model
- Polyurethane rubber leveling feet with stainless steel stems
- 8-inch diameter preformed rubber wheels with ball bearings Caster model
- 3 1/2 in diameter preformed rubber casters, two fixed, two swivel with lock
Specifications
- Load Cell
- IP67, environmentally sealed Aluminum
- Output Impedance
- 350 ohm
- Maximum Overload
- 200%
- Overload Protection
- Five-point, independently adjusted
- Scale Frame
- Mild steel powder-coated black
- Scale Cover
- AISI304L, straight line finish, Ra=45 ± 10
- Cable Length
- 10 ft (3 m)
- Temperature
- Compensated: 14 °F to 104 °F (-10 °C to 40 °C)
- Warranty
- Two-year limited
- Approvals
- NTEP 06-010, Class III 5,000 d Measurement Canada AM-5625
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 97072 | 250 lb (125 kg) 24 × 24 × 8.75 in 275 lb |
| 97073 | 500 lb (225 kg) 24 × 24 × 8.75 in 275 lb |
| 97074 | 250 lb (125 kg) 24 × 24 × 9.31 in 290 lb |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 182. Specifications are subject to change without notice.
