Rice Lake · Bench Scales

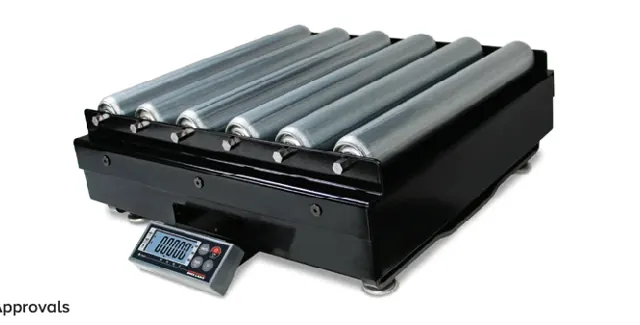

BenchPro™ BP-SR
Roller Top Digital Shipping Scale
Standard features
- Simple operation, easy to set up
- Large six-digit backlight LCD display with 1-inch (25.4-mm) characters protected by heavy-duty tempered glass
- Powered USB HID point of sale interface
- Nine-pin RS-232 interface for use with SMA and NCI protocols
- Gravitational compensation allows for adjustment of factory calibration to meet your local gravity setting, non-approved
- Compatible with FedEx Ship Manager ® and UPS Worldship ®
Specifications
- Power
- In-line power supply (included)
- Input
- 100 to 240 VAC, +10% -15%, 3-wire w/ground Terminated with standard USA 3-prong plug
- Output
- 12 V at 0.1 Amps DC minimum
- Frequency
- 50/60 Hz ± 3 Hz, standard
- Approvals
- UL, CE, EN, CUL
- Excitation
- 3.0 mV/V
- Resolution
- Internal: 500,000 counts
- USB HID
- USB 2.0 full speed; Vendor ID: 1C19; Product ID: 0002
- RS-232 Cable (Included)
- 10 ft DB 9-pin male to female, straight pass-through
- USB Cable (Included)
- 46 in (1,168 mm) A/B type USB cable
- Dynamic Response
- Response time for stable weight: 0 to 1,000 d, 1,000 ms, maximum mean average 1,000 d +, 1,500 ms, maximum mean average
- Overload Protection
- Corner and center overload protection
- Annunciators
- Six: zero, gross/brutto, net, W1/W2/W3 multi-range
- Display
- Large six-digit backlight LCD display with 1-inch (25.4 mm) characters protected by heavy-duty tempered glass
- Keys/Buttons
- Four: units, tare, on/off, F1 Minimum key press life of 500,000 cycles
- Material
- Display: ABS plastic housing Scale base: Powder coat painted mild steel base plate and load bridge with galvanized roller conveyor
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 182394 | 100 × 0.02 lb (50 × 0.01 kg) 18 × 18 in 77 lb |
| 182381 | 150 × 0.05 lb (75 × 0.02 kg) 18 × 18 in 77 lb |
| 182386 | 300 × 0.1 lb (150 × 0.05 kg) 18 × 18 in 77 lb |
| 182398 | 300 × 0.1 lb (150 × 0.05 kg) 20 × 20 in 94 lb |
| 182402 | 300 × 0.1 lb (150 × 0.05 kg) 24 × 24 in 131 lb |
Options & accessories (4)
| 180901 | Second customer display, BenchPro BP-SR no keyboard with 68 in cable 4 lb |
| 174784 | Second remote operator display, BenchPro BP-SR with 68 in cable 4 lb |
| 183103 | 4 lb |
| 178501 | USB RS-232 serial adapter 1 lb |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 189. Specifications are subject to change without notice.
