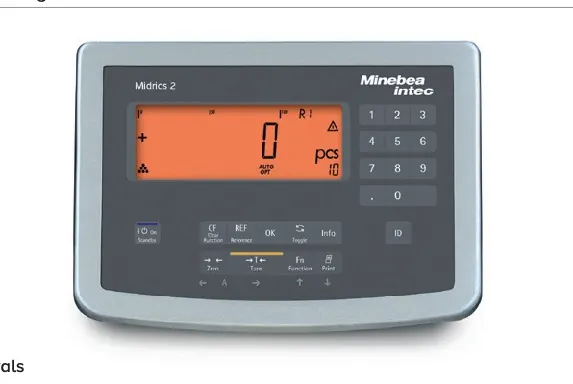

Standard features

Amber backlit LCD display, 0.8 in, 13 segment
External calibration routine
RS-232C
Numeric keypad (with two IDs) for entering identifier codes and preset tares
Info key for quick and easy display of tare input and ID codes
Date/time fully integrated
Three built-in LED checkweighing lights
Bar graph weighing range indicator
Optional bar code scanner for preset tare, reference weight and ID entry
Stored customer-specific data records
Two scale connections, analog or digital

Specifications

Supply Voltage: 9 V
Power Requirements: 120 to 240 VAC, 17 W (23 VA maximum)
Indicator Housing: AISI 304 stainless steel
Indicator Dimensions: (L × W × H) 11.9 × 7.4 × 3.5 in (302.3 × 188 × 89 mm)
Temperature: Operating: 14 °F to 104 °F (-10 °C to 40 °C)
Cable Length: 3 m (10 ft)
Warranty: Two-year limited, pending evaluation

Models & part numbers

Available configurations.

Part / model	Description
156409	CAW2P1U-10CC-I 10 × 10 in 15 lb (6 kg) 0.0005 lb (0.0002 kg) 20 lb
156414	CAW2P1U-50DD-I 12 × 12 in 60 lb (30 kg) 0.002 lb (0.001 kg) 24 lb
156420	CAW2P1U-100EE-I 18 × 18 in 150 lb (60 kg) 0.005 lb (0.002 kg) 65 lb
156423	CAW2P1U-250GG-I 24 × 24 in 300 lb (150 kg) 0.01 lb (0.005 kg) 120 lb
156424	CAW2S1U-10CC-I 10 × 10 in 15 lb (6 kg) 0.0005 lb (0.0002 kg) 22 lb
156425	CAW2S1U-50DD-I 12 × 12 in 60 lb (30 kg) 0.002 lb (0.001 kg) 30 lb
156426	CAW2S1U-100EE-I 18 × 18 in 150 lb (60 kg) 0.005 lb (0.002 kg) 68 lb
156427	CAW2S4UR-250GG-I 24 × 24 in 300 lb (150 kg) 0.01 lb (0.005 kg) 127 lb

Options & accessories (5)

156440	YDH01CWSUS Post mount assembly for 10 × 10 in platforms, 13 in high
156441	YDH02CWSUS Post mount assembly for 12 × 12 in platforms, 19 in high
156442	YDH03CWSUS Post mount assembly for 18 × 18 in platforms, 29 in high
171727	YDH12CWSUS Bench mount bracket
105607	YDH02CISUS Tiltable wall mount bracket

Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 831. Specifications are subject to change without notice.
