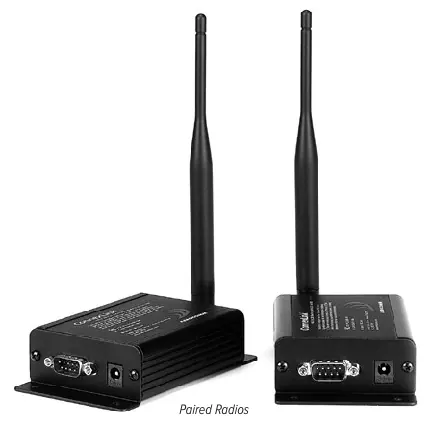

ConnexLink™
Wireless Radio 900 MHZ Transceivers
Standard features
- Durable industrial-grade enclosure with mounting flanges
- Reliable communications up to 115 to 200 kbps
- Supports point-to-point and point-to- multipoint applications
Specifications
- Power
- Line voltage: 100 to 120 V Frequency: 50/60 Hz (240 V outside the US) Input: 7 to 18 VDC Output: 5 to 1,000 mW variable
- Power Supply
- AC transformer via 6 ft cable (183 cm)
- Frequency Band
- 902 to 928 MHz
- Modulation
- FHSS FSK
- Interface
- Standard: RS-232 ConnexLink PRO: RS-485
- Serial Interface Data Rate
- Up to 115 to 200 kbps
- Current Draw (at 12 VDC)
- RF: Standard ConnexLink: 400 mA Pro: 325 mA TX, 20 mA RX
- Antenna Connector
- Reverse polarity SMA jack (female)
- Channels
- 32 selectable channels
- Security
- 1-byte system ID, DES
- Sensitivity
- -99dB at full RF data rate
- Range (line-of-sight)
- Up to 20 miles (32 km)
- Dimensions
- 4.75 × 2.75 × 1.17 in (121 × 70 × 30 mm)
- Temperature
- Operating: -40 °F to 176 °F (-40 °C to 80 °C)
- Humidity
- 10% to 90% non-condensing
- Weight
- < 6 oz (< 170 g)
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 86134 | ConnexLink RF device 900 MHz RF device server/client (requires minimum of 2) |
| 105776 | ConnexLink Pro 900 MHz 1W, wireless transceiver with large buffer |
| 110538 | ConnexLink FRP enclosure with heater |
| 110539 | ConnexLink Pro enclosure with heater |
| 129662 | Paired ConnexLink |
Options & accessories (5)
| 103979 | Antenna 1/2 Wave, 2 dBi, 7 in for 900 MHz radios |
| 119448 | Yagi antenna |
| 119449 | Cable, Yagi antenna 20 ft* |
| 22436 | RS-232 nine-pin female to blunt end |
| 98084 | DC power cable option |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 557. Specifications are subject to change without notice.
