Interface · Indicators / Controllers

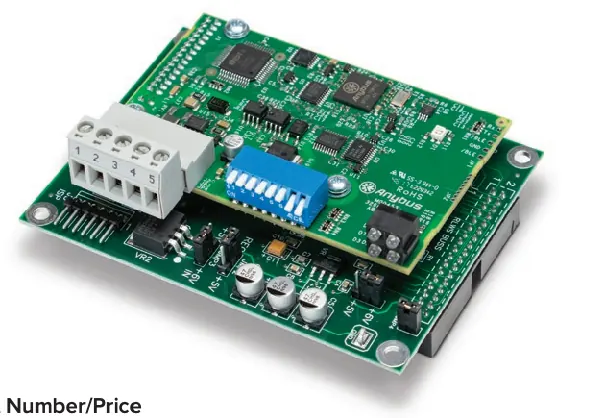

DeviceNet® Interface
720i™/920i®
Standard features
- DeviceNet communication adapter
- Polled I/O connection
- 125 Kbps, 250 Kbps, and 500 Kbps baud rate
- Onboard LED diagnostics
- Floating-point commands support decimal points
- Option for 920i®
Specifications
- Power
- 5 VDC, 270 mA Fieldbus connector requires 24 VDC, ±10%
- Communication Ports
- Twisted-pair cabling at 125, 250, or 500 Kbps Update rate is dependent on the configured baud rate and the number of network modes
- Fieldbus Interface
- Pluggable screw connector
- Diagnostic LEDs
- Module status and network status
- Galvanic Isolation
- Bus power is separated from other electronics via DC/DC converter. The send and receive signals are isolated via opto couplers.
- Dimensions
- 2.13 × 3.38 × 0.59 in (86 × 54 × 15 mm)
- Temperature
- Operating: 14 °F to 158 °F (-10 °C to 70 °C)
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 68541 | DeviceNet interface kit for 720i/920i indicators 3 lb |
| 103136 | ControlNet interface for 920i indicator |
Options & accessories (2)
| 69949 | Additional operating manual |
| 103122 | Additional operating manual |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 549. Specifications are subject to change without notice.
