Standard features
- High-speed omnidirectional scan pattern
- Rugged, durable housing
- Reads 1D and 2D symbols
- Supports 123Scan2 configuration tool
- Enables rapid and easy customized setup through a free, wizard-based PC software tool
- Scans any barcode on paper, mobile phones and computer displays
Specifications
- Decode Capability
- 1D - All major 1D bar codes 2D - PDF417, DataMatrix, QR Code, Aztec, Composite Codes and MaxiCode Postal - US Postnet, US Planet, UK Postal, Australian Postal, Japan Postal
- Dimensions
- (L × W × H) 2.44 × 2.30 × 1.15 in (6.20 × 5.84 × 2.92 cm)
- Weight
- 3.9 oz (111 g)
- Communications
- Interfaces supported: 9-pin male D-sub USB (full speed) and TTL level RS-232 with RTS and CTS
- Performance Characteristics
- Sensor resolution: 752 (H) × 480 (V) gray scale Imager field of view DS457 SR: 39.6° horizontal, 25.7° vertical Aiming element: 655 ± 10 nm (VLD) Illumination element: 625 ± 5 nm (LED)
- Power Maximum
- 5 VDC ± 10% at 450 mA
- Temperature Range
- Operating: -4 °F to 122 °F (-20 °C to 50 °C) Storage: -40 °F to 158 °F (-40 °C to 70 °C)
- Humidity
- 95% RH, non-condensing at 122 °F (50 °C)
- IP Rating
- IP54
- Drop Resistance
- Withstands multiple 30 in (76 cm) drops to concrete
- Image File Formats
- BMP, TIFF, JPG
- Regulatory
- Electrical Safety ETL, VDE, CETL, EN60950, Ctick, VCCI Laser Classification Intended for use in CDRH Class II/IEC 825 Class I devices EMI/RFI FCC Part 15 Class B, ICES-003 Class B, CISPR22 Class B
- Warranty
- Three-year limited (against defects in workmanship and materials)
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|

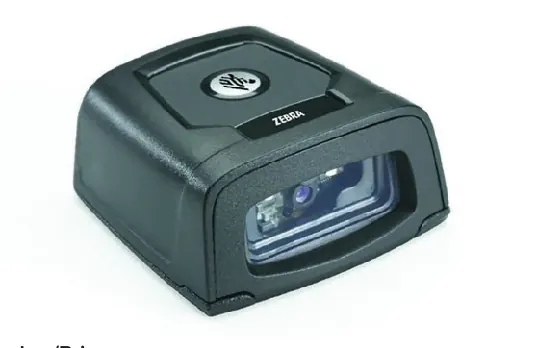

| 154077 | DS457 (scanner 5 VDC ±10 % at 450 mA requires power source) 4 oz (111 g) |
Options & accessories (1)
| 97479 | Cable assembly, DB9F to blunt end, can supply power from scale indicator DI/O |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 919. Specifications are subject to change without notice.
