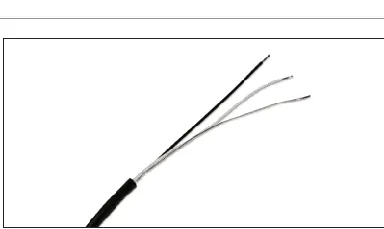

Standard features
- Two-conductor with bare ground
- RFI/EMI protected with foil shield
- 20 gauge conductors
- Perfect for RS-232, two-wire RS-485 and 20 mA current loop communications
- Diameter: 0.19 in
- Conductor colors are black and white
- Sheathed in gray PVC
- Mylar aluminum foil shield with stranded tinned copper drain wire
- Diameter: 0.375 in
- Duplex cable polyethylene black jacket material
- Plastic fiber core
- 4.4 + 0.10 mm outer diameter of duplex cable
- 2.2 + 0.007 mm single cable outer diameter
- Operating temperature: 32 °F to 158 °F (0 °C to 70 °C)
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 32803 | EL144/ft |
| 72691 | EL144, 100 ft |
| 72072 | EL144, 500 ft |
| 72693 | EL144, 1,000 ft |
| 15497 | BCD, 24 AWG, 30-conductor/ft |
| 78910 | Custom length/ft |
| 78026 | 100 ft cable |
| 78027 | 200 ft cable |
| 78028 | 300 ft cable |
| 80892 | Fiber-optic cable cutter |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 441. Specifications are subject to change without notice.
