Rice Lake · Hardware and Accessories

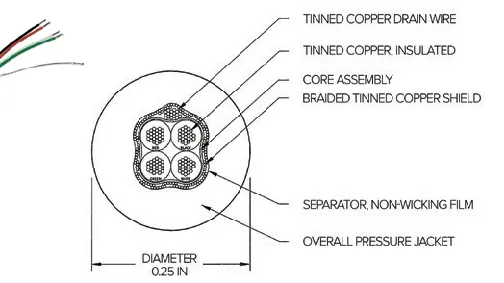

EL146, 4 Wire
Standard Load Cell Cable
Standard features
- Four-wire load cell cable
- 20 AWG tinned copper wire stranded for flexibility
- Braided shielding is encased in red PVC
- All conductors are industry-standard color-coded
- Diameter: 0.25 in
- Use the four-wire cable for repairing or extending existing cable
- Temperature rating: -22 °F to 126 °F (-30 °C to 80 °C) EL146HE Hostile Environment Cable
- Designed for use in hostile environments
- Polyurethane jacketing provides superior chemical and abrasion resistance
- RFI and EMI protected with foil overbraid shield
- Unmatched durability, yet extremely flexible
- Diameter: 0.32 in
- Temperature rating: -22 °F to 176 °F (-30 °C to 80 °C)
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 15505 | 100 ft Four-conductor cable |
| 15506 | 250 ft Four-conductor cable |
| 15507 | 500 ft Four-conductor cable |
| 15508 | 1,000 ft Four-conductor cable |
| 15493 | Custom length Four-conductor cable/ft |
| 15510 | 100 ft Four-conductor hostile environment cable |
| 15511 | 250 ft Four-conductor hostile environment cable |
| 15512 | 500 ft Four-conductor hostile environment cable |
| 15513 | 1,000 ft Four-conductor hostile environment cable |
| 15494 | Custom Length Four-conductor hostile environment cable/ft |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 440. Specifications are subject to change without notice.
