Rice Lake · Hardware and Accessories

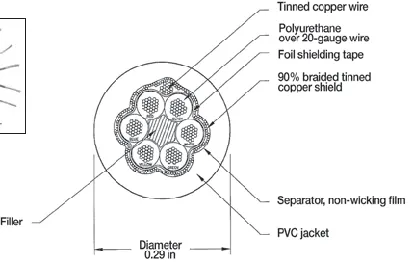

EL147, 6 Wire
Standard Load Cell Cable
Standard features
- 20 AWG tinned copper wire stranded for flexibility
- Braided shielding is encased in red PVC
- All conductors are industry-standard color-coded
- Diameter: 0.29 in
- The six-wire cable is best suited for longer runs where remote sense lines can be used
- Temperature rating: -22 °F to 126 °F (-30 °C to 80 °C) EL147RP Rodent Protection Cable
- Tinned copper overbraid provides superior rodent and abrasion deterrent
- Enhanced EMI/RFI protection
- Six-conductor industry-standard color-coded
- Ideal for truck and railroad-track scales
- Diameter: 0.33 in
- Temperature rating: -22 °F to 176 °F (-30 °C to 80 °C)
- Jacket coating enhanced with a chemical coating “NAW” that is distasteful to rodents
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 15515 | 100 ft Six-conductor cable |
| 15516 | 250 ft Six-conductor cable |
| 15517 | 500 ft Six-conductor cable |
| 15518 | 1,000 ft Six-conductor cable |
| 15495 | Custom length Six-conductor cable/ft |
| 31475 | Custom length Six-conductor rodent protection cable/ft |
| 131964 | 100 ft Six-conductor rodent protection cable |
| 131966 | 500 ft Six-conductor rodent protection cable |
| 131967 | 1,000 ft Six-conductor rodent protection cable |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 438. Specifications are subject to change without notice.
