Rice Lake · Hardware and Accessories
EL147HE, 6 Wire
Hostile Environment Load Cell Cable
Standard features
- Designed for use in hostile environments
- Polyurethane jacketing provides superior chemical and abrasion resistance
- RFI and EMI protected with foil overbraid shield
- Unmatched durability, yet extremely flexible
- All conductors are industry-standard color-coded
- Diameter: 0.32 in

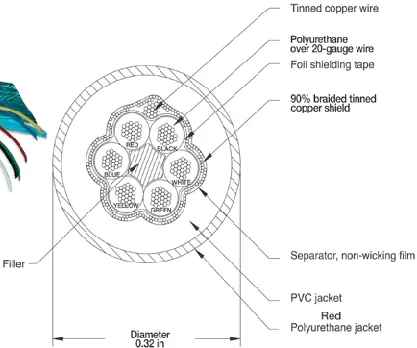

- Temperature rating: -22 °F to 176 °F (-30 °C to 80 °C) 90% Braided Shield PVC Jacket Foil Shield Polyurethane Jacket Six conductor polyurethane over 20 gauge wire EL147IS Hazardous Environment Blue Jacket Cable
- Designed for intrinsically safe applications (must be wired according to Factory Mutual System-approved diagram)
- Polyurethane over PVC double jacketing provides superior chemical and abrasion resistance
- Both foil and braided wire shields for added RFI and EMI protection
- Six-conductor is industry-standard color-coded (Also available three-conductor)
- Suited for longer runs where remote sense lines can be used
- Temperature rating: -22 °F to 176 °F (-30 °C to 80 °C)
- Diameter: 0.32 in 80% Braided Shield Blue PVC Jacket Foil Shield Blue Polyurethane Jacket Six conductor polyurethane over 20 gauge wire
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 15521 | 250 ft Six-conductor hostile environment cable |
| 15522 | 500 ft Six-conductor hostile environment cable |
| 15523 | 1,000 ft Six-conductor hostile environment cable |
| 15496 | Custom length Six-conductor hostile environment cable/ft |
| 32817 | EL147IS, blue jacket six-conductor/ft |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 439. Specifications are subject to change without notice.
