Standard features
- Designed to accommodate cables larger than the EL214; all other dimensions and performance features are the same
- Solder terminals
- Designed for use in weather-exposed or direct-burial locations
- Each kit contains plastic splicing tube, circuit board, insulating resin and instructions
- Solder terminals
- Each kit includes cable for four Flintec SB4 load cells as listed
Specifications
- Dimensions
- (L × W × H) 3.00 × 1.00 × 1.50 in
- Mounting Centers
- 2.50 in
- Number of Connections
- Seven
- Cable Diameter
- 0.187 to 0.312 in
- Cure Time For Potting
- Two hours at 73 °F (23 °C)
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|

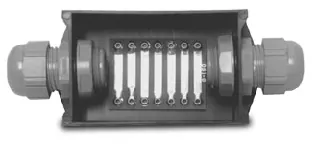

| 15486 | EL214T |
| 15612 | EL215 |
| 18412 | For SB4, 225 to 5,200 lb 10 ft |
| 18413 | For SB4, 11,250 to 22,500 lb 15 ft |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 444. Specifications are subject to change without notice.
