Rice Lake · Hazardous Location Instrumentation

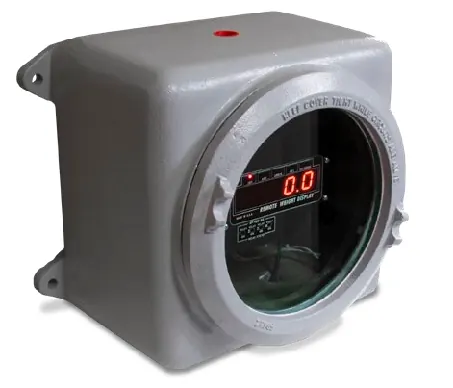

EL232 XPCD
Explosion-proof Remote Serial Display
Standard features
- 20 mA current loop or RS-232 input
- Compatible with most Rice Lake indicators
- NEMA Type 4, 7CD, 9EFG enclosure
Specifications
- Input Voltage
- 115 VAC, 60 Hz
- NEC Classifications
- Class I, Division 1, Groups C & D; Class II, Division 1, Groups E, F & G and Class III hazardous environments
- Baud Rate
- 1200, 2400, 4800 and 9600
- Interfaces
- 20 mA current loop and RS-232 Please consult factory for model numbers and interface requirements
- Display
- High-intensity, red LED, 0.8 in (20.3 mm) high digits
- Weight
- Approximately 60 lb (27.2 kg)
- Warranty
- One-year limited
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 20904 | EL232 XPCD explosion proof remote serial display 60 lb |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 575. Specifications are subject to change without notice.
