Standard features

Strain relief cable fittings
Removable connectors for easy wiring
Connect two or four single load cells (even number of load cells only)

Specifications

Cable Fittings: Five nylon 0.187 to 0.312 in cable strain reliefs
Rating/Material: NEMA Type 4X, 40 psi washdown Stainless steel
Connectors: Electrovert 0.197 in (5.0 mm) miniature two piece connectors. Maximum wire size #14 AWG; connectors are removable for easy wiring.
Trimming: Individual cell, signal trim
Temperature: Operating: 0 °F to 122 °F (-18 °C to 50 °C)
Potentiometers: 100,000 ohm, 25-turn cermet
Circuit Board: 6.5 × 1.5 in, with anti-fungal coating
Warranty: One-year limited

Models & part numbers

Available configurations.

Part / model	Description

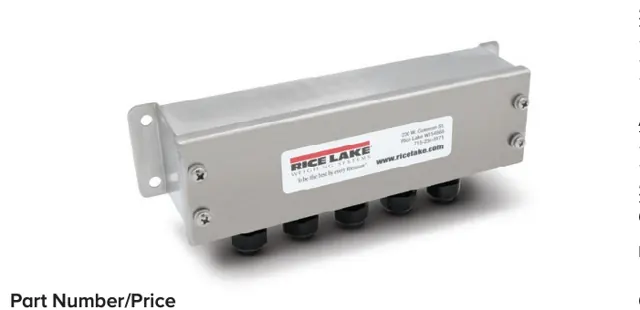

21165	EL504 signal trim junction box
21296	Board only
165274	Enclosure only (includes cord grips and cover)

Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 597. Specifications are subject to change without notice.
