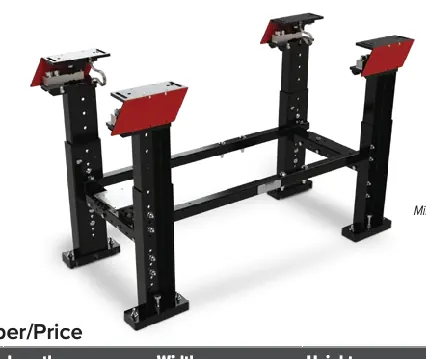

Standard features
- Adjustable height and width in 1-in increments
- Mild or stainless steel frame
- Individual load cell overload protection
- Jack bolts in leveling feet for easy conveyor height alignment
- Kit includes: two stands, load cells, junction box, two adjustable stabilizing braces, leveling shims and hardware
Specifications
- Load Cell
- Four RL32018 or RL32018S single-ended beam: 250 lb, 500 lb and 1,000 lb capacity
- Cable Length
- 25 ft
- Warranty
- Two-year limited
- Approvals
- Load cells are FM approved
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 212655 | 30 to 60 in 22 to 28 in 22 to 28 in |
| 212656 | 30 to 60 in 22 to 28 in 29 to 36 in |
| 212659 | 30 to 60 in 29 to 40 in 22 to 28 in |
| 212660 | 30 to 60 in 29 to 40 in 29 to 36 in |
| 212957 | 30 to 60 in 41 to 58 in 22 to 28 in |
| 212958 | 30 to 60 in 41 to 58 in 29 to 36 in |
| 212661 | 30 to 60 in 22 to 28 in 22 to 28 in |
| 212662 | 30 to 60 in 22 to 28 in 29 to 36 in |
| 212663 | 30 to 60 in 29 to 40 in 22 to 28 in |
| 212665 | 30 to 60 in 29 to 40 in 29 to 36 in |
| 212953 | 30 to 60 in 41 to 58 in 22 to 28 in |
| 212954 | 30 to 60 in 41 to 58 in 29 to 36 in |
| 212666 | 30 to 60 in 22 to 28 in 22 to 28 in |
| 212667 | 30 to 60 in 22 to 28 in 29 to 36 in |
| 212669 | 30 to 60 in 29 to 40 in 22 to 28 in |
| 212949 | 30 to 60 in 41 to 58 in 22 to 28 in |
| 212950 | 30 to 60 in 41 to 58 in 29 to 36 in |
| 213276 | 30 to 60 in 22 to 28 in 22 to 28 in |
| 213278 | 30 to 60 in 22 to 28 in 29 to 36 in |
| 213280 | 30 to 60 in 29 to 40 in 22 to 28 in |
| 213282 | 30 to 60 in 29 to 40 in 29 to 36 in |
| 213283 | 30 to 60 in 41 to 58 in 22 to 28 in |
| 213284 | 30 to 60 in 41 to 58 in 29 to 36 in |
| 213292 | 30 to 60 in 22 to 28 in 22 to 28 in |
| 213293 | 30 to 60 in 22 to 28 in 29 to 36 in |
| 213294 | 30 to 60 in 29 to 40 in 22 to 28 in |
| 213295 | 30 to 60 in 29 to 40 in 29 to 36 in |
| 213296 | 30 to 60 in 41 to 58 in 22 to 28 in |
| 213297 | 30 to 60 in 41 to 58 in 29 to 36 in |
| 213304 | 30 to 60 in 22 to 28 in 22 to 28 in |
| 213305 | 30 to 60 in 22 to 28 in 29 to 36 in |
| 213306 | 30 to 60 in 29 to 40 in 22 to 28 in |
| 213308 | 30 to 60 in 41 to 58 in 22 to 28 in |
| 213309 | 30 to 60 in 41 to 58 in 29 to 36 in |
Options & accessories (3)
| 19352 | Indicator floor stand mild steel, 36.3 in high |
| 213229 | Additional stabilizing brace kit mild steel |
| 213316 | Additional stabilizing brace kit stainless steel |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 581. Specifications are subject to change without notice.
