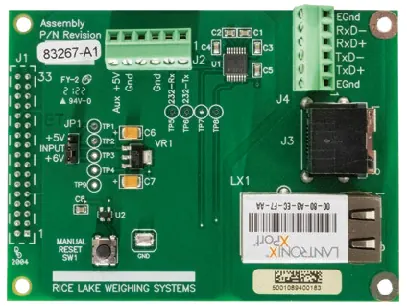

Ethernet TCP/IP Interface
720i™/920i®
Standard features
- Supports any serial devices with seven or eight data bits requiring Ethernet access
- Compact size for internal installation in 720i and 920i indicators
- Can be used in other applications requiring five-volt power supplied
- 10/100 megabyte through RJ45 connector or wireless option
- HTTP, serial, telnet and SNMP management
Specifications
- Power
- 5 VDC, 250 mA
- Supported Protocols
- ARP, UDP, TCP, Telnet, SNMP, ICMP, HTTP, BOOTP, DHCP and TFTP
- Network Interface
- Ethernet: RJ-45 (10/100 Base-T) or AUI
- Serial Line Formats
- Characters: 7 or 8 data bits Stop bits: 1 or 2 Parity: odd, even, none
- Data Rates
- Single port, 300 bps to 115.2 Kbps default 9,600
- Dimensions
- 2.00 × 1.90 × 0.75 in (52 × 49 × 19 mm)
- Temperature
- Operating: 41 °F to 122 °F (5 °C to 50 °C)
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 71986 | Ethernet TCP/IP interface for 720i/920i indicators 3 lb |
| 206271 | Wireless Ethernet TCP/IP interface for 720i/920i indicators 3 lb |
| 206272 | 3 lb |
Options & accessories (3)
| 72117 | Additional operating manual |
| 72697 | RJ-45 to RJ-45, straight, 7 ft length |
| 78860 | RJ-45 to RJ-45, cross over, 7 ft length |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 551. Specifications are subject to change without notice.
