Standard features
- More powerful and versatile access control
- User-friendly proximity technology
- Uses the 13.56 MHz technology platform
- High-intensity, three-color light bar provides clear, visual feedback, even in direct sunlight
- Selectable, distinct tone sequences indicate status conditions
- All RF data transmission between the card and reader is encrypted using a secure algorithm
- Close range
- Offer sufficient read/write memory to store multiple biometric templates
- Available in a 2 or 16 application area configuration
- Offer multiple, securely separated areas to enable numerous applications, including the HID standard access control application
- Future growth for new read/write applications
- ISO 15693 and 14443B2 standards for read/write contactless communication
- Cost-effective way to enhance the security of your access control installation
- Close range
Specifications
- Power Supply
- 10 to 16 VDC reverse voltage protected Linear supply recomm ended
- Read Range*
- 2.5 to 4.5 in (6.3 to 11.4 cm) with HID iCLASS® card 1.0 in (2.5 cm) with HID iCLASS key 1.0 in (2.5 cm) with HID iCLASS tag 1.5 to 2.0 in (3.8 to 5.0 cm) with HID iCLASS prox 1 to 2 in (2.5 to 5.0 cm) with MIFARE® card (serial number only) *Using ISO 15693 mode (except MIFARE®). Dependent upon installation conditions. Please note that all iCLASS credentials are available in either a 2K bits (256 Bytes) or 16Kbits (2 KBytes) configuration.
- Transmit Frequency
- 13.56 MHz
- Current Requirements (Avg/Peak)
- 80/260 mA at 12 VDC
- Material
- UL94 polycarbonate
- Cable Distance
- Wiegand interface: 500 ft (150 m) Recommended cable is ALPHA 1295 (22AWG) Five-conductor stranded with overall shield or equivalent. Additional conductors may be required to connect all outputs.
- Dimensions
- (L × W × H) 3.30 × 0.85 × 4.80 in (84 × 22 × 122 mm)
- Temperature
- Operating: -31 °F to 150 °F (-35 °C to 65 °C)
- Humidity
- 5 to 95% RH non-condensing
- Weight
- 8.8 oz (249.5 g)
- Pending Certifications
- Taiwan, Singapore, Germany VdS
- Approvals
- UL 294/cUL FCC Certification Canada Certification CE Mark (Europe) New Zealand Australia c-Tick
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 176452 | |

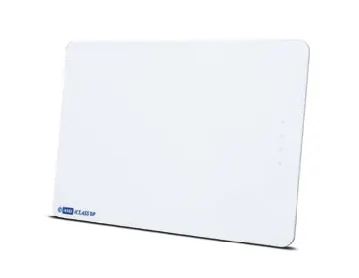

| 85902 | iClass Smart Card pack 1 to 25 13.56 MHz |
| 85903 | iClass Smart Card pack 26 to 50 13.56 MHz |
| 85904 | iClass Smart Card pack 51 to 75 13.56 MHz |
| 85905 | iClass Smart Card pack 76 to 100 13.56 MHz |
| 95358 |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 31. Specifications are subject to change without notice.
