Rice Lake · Bench Scales
IGS-381

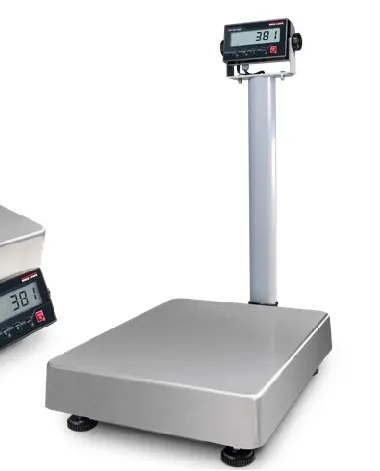

Industrial General Scale with 381 Indicator Package
Standard features
- LCD display
- Battery powered
- Push-button and keyed tare
- Two communication ports
- Five tactile buttons
- Configurable print formats
- ABS enclosure
Specifications
- Load Cell
- RL26018A Anodized aluminum NTEP Certified
- Scale Construction
- Painted die cast aluminum frame with 304 stainless steel cover
- Maximum Overload
- 150% to 200% depending on capacity
- Compensated Temperature Range
- 14 °F to 104 °F (-10 °C to 40 °C)
- Power
- Battery: AA or Nickel Metal Hydride (NiMH) 381-2D-AA Adapter: 115/230 VAC to 12 VDC 381-2D-NiMH Charger: 115/230 VAC
- Battery Life
- AA: 40 hours with 1 × 350 ohm load cell NiMH: 80 hours with 1 × 350 ohm load cell
- Communication
- One full-duplex RS-232 One USB 2.0
- Annunciators
- g, lb, t, tn, kg, oz, battery level, PT, LT, gross, zero, unstable, net
- Display
- Six 1 in (25 mm) tall, LCD digits
- Keys/Buttons
- 5 tactile buttons
- Temperature
- Certified: 14 °F to 104 °F (-10 °C to 40 °C) Operating: 14 °F to 122 °F (-10 °C to 50 °C)
- Warranty
- Two-year limited
- Approvals
- NTEP Measurement Canada
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 232166 | 150 × 0.05 lb 21.13 × 17.25 × 5.42 in 50 lb |
| 232164 | 300 × 0.1 lb 21.13 × 17.25 × 5.42 in 50 lb |
| 232697 | 150 × 0.05 lb 21.13 × 17.25 × 5.42 in 50 lb |
| 232696 | 300 × 0.1 lb 21.13 × 17.25 × 5.42 in 50 lb |
| 232167 | 150 × 0.05 lb 21.13 × 17.25 × 5.42 in 47 lb |
| 232699 | 150 × 0.05 lb 21.13 × 17.25 × 5.42 in 47 lb |
| 232695 | 300 × 0.1 lb 21.13 × 17.25 × 5.42 in 47 lb |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 184. Specifications are subject to change without notice.
