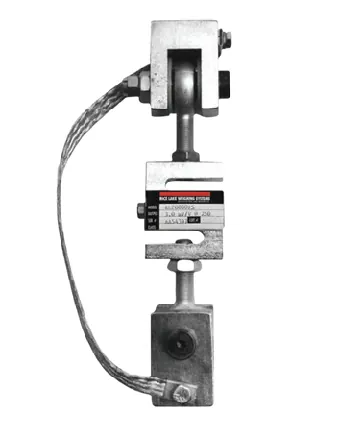

Standard features

Provides greater safety than traditional suspension configurations
Complete package for ease of installation
Built-in electrical isolation without having to use isolators (not available on 20,000 lb version)
Provides correct load cell loading even in difficult installations
Dramatically reduces overall length
Capacities from 300 to 20,000 lb
Clevis mounts with nylon insulating washers
PTFE-lined rod end ball joints (not available on 20,000 lb version)
Completely isolates load cell from stray currents
Grounding strap for electrical continuity
Zinc plated clevis
Mount only: does not include load cell

Models & part numbers

Available configurations.

Part / model	Description
17969	300 lb 1/2-13 3/8-24 300
17895	500 lb 1/2-13 1/4-28 500
17899	5,000 lb 3/4-10 3/4-16 5,000
17900	10,000 lb 1-8 3/4-16 10,000
17958	15,000 lb (RL20000 I ) 1 1/4-7 1-12 15,000
63166	15,000 lb (RL20001) 1 1/4-7 1-14 15,000
33630	500 lb 3/8-16 3/8-24 500
33631	300 lb 1/2-13 3/8-24 300
33632	500 lb 3/8-16 1/4-28 500
33633	500 lb 1/2-13 1/4-28 500
33634	2,000 lb 1/2-13 1/2-20 2,000
33635	2,500 lb 5/8-11 1/2-20 2,500
33636	3,000 lb 3/4-10 1/2-20 3,000
33637	5,000 lb 3/4-10 3/4-16 5,000

Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 428. Specifications are subject to change without notice.
