Standard features

Transient protection using gas discharge tubes
Stainless steel, NEMA Type 4X enclosure
Section and individual cell trim capability
Compact enclosure only 1.75 in deep
Strain relief cable fitting
Connect two, four, six, eight or 10 single load cells (even number of load cells only)
Legal for Trade sealing screws, wire and seal included

Specifications

Cable Fittings: Eleven nylon 0.079 to 0.314 in cable strain reliefs
Rating/Material: NEMA Type 4X Stainless steel
Connectors: Electrovert 0.197 miniature screw terminals Five positions Maximum wire size: #14 AWG External enclosure ground stud
Trimming: Individual cell and section signal trim
Temperature: Operating: 0 °F to 122 °F (-18 °C to 50 °C)
Potentiometers: 100,000 ohm, 25-turn cermet, individual trim 100 ohm, for section trimming
Warranty: One-year limited

Models & part numbers

Available configurations.

Part / model	Description

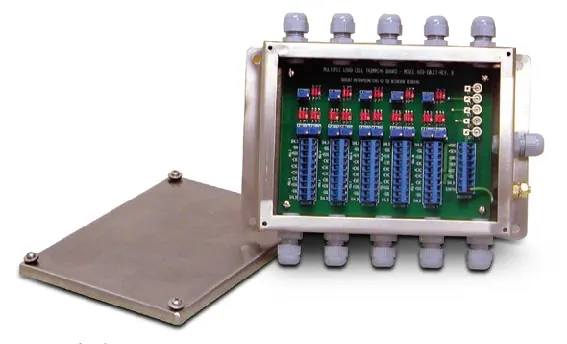

68813	JB1010ST signal trim junction box
68811	Board only
165277	Enclosure only (includes cord grips)

Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 602. Specifications are subject to change without notice.
