Rice Lake · Junction Boxes / Simulators

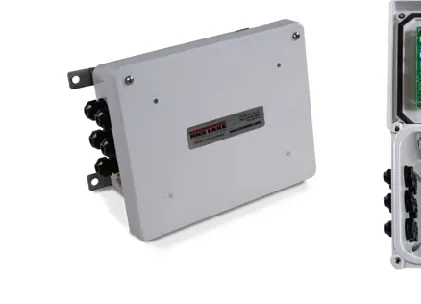

JB1010T
Signal/Excitation Trim Junction Box
Standard features
- Transient protection
- Signal or excitation trim
- Front panel mounting
- Strain relief cable fittings
- Connect up to 10 single load cells
- Trims odd numbers of cells without modification
Specifications
- Cable Fittings
- Nylon waterproof strain-relief type
- Rating/Material
- NEMA Type 4X Fiberglass Reinforced Polyester (FRP)
- Terminal Block
- Rated 300V/15A; 7-position screw terminal can each accommodate up to #16 AWG
- Trimming
- Individual cell, section signal and excitation trim
- Temperature
- Operating: 0 °F to 122 °F (-18 °C to 50 °C)
- Potentiometers
- 100,000 ohm, 25-turns cermet
- Mounting Centers
- 3.75 × 2.31 in (95.2 × 58.7 mm)
- Cable Diameter
- 0.079 to 0.314 in
- Warranty
- One-year limited
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 36231 | JB1010 signal/excitation trim junction box |
| 36351 | Board only |
| 165276 | Enclosure only (includes cord grips) |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 601. Specifications are subject to change without notice.
