Rice Lake · Indicators / Controllers

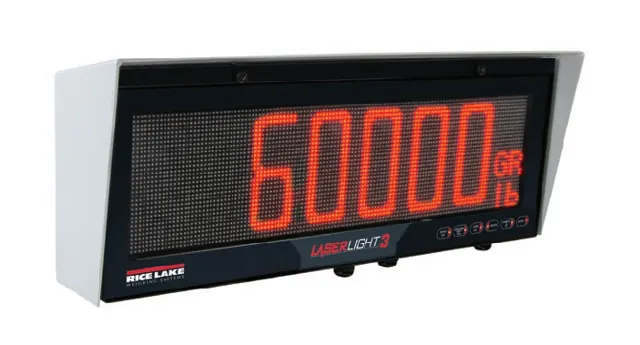

LaserLight3™
Color Large-display Weight Indicator
Standard features
- Color display
- Displays six high-intensity digits up to 5 in height
- Adjustable daylight/night intensity
- Mirror mode (reverse image) function
- Durable weather tight enclosure with flip-down door
- Flat-wall mounted or add VESA or offset mount
Specifications
- Power
- AC voltages: 100 to 240 VAC; 50/60 Hz
- Power Consumption
- 120 watt (120 VAC)
- Excitation Voltage
- 5 VDC, 8 × 350 ohm or 16 × 700 ohm load cells
- Analog Signal Input Range
- -5 mV to +70 mV
- Analog Signal Sensitivity
- 0.3 µV/graduation minimum 1 µV/graduation recommended
- A/D Sample Rate
- 6.25 to 120 Hz, software selectable
- Resolution
- Internal: 8,000,000 counts Display: 1,000,000
- System Linearity
- Within 0.01% full scale
- Output Interface
- Ethernet TCP/IP, independently configurable echo port
- Input Data Format
- Baud rate: 1200, 2400, 4800, 9600, 19200, 38400, 57600 and 115200 self-learning or configurable
- Update
- Continuous or out-of-motion modes Message interrupt mode
- Digital I/O
- F Four I/O read or set 5 V logic
- Communication Ports
- Two full-duplex RS-232 RS-485/422 (two-wire or four-wire) Micro USB (device) Ethernet TCP/IP (10/100) Wi-Fi G
- Display
- Bright, outdoor color LED lamps F 128 × 32-pixel, 4 mm pitch Decimal or comma indication Weight display with units and mode Message display 1, 2 or 4 lines
- Maximum Viewing Distance
- 4-inch character 100 ft (30 m) 5-inch character: 150 ft (46 m)
- Viewing Angle
- 160 °
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 205780 | LaserLight3 large-display weight indicator |
Options & accessories (5)
| 212745 | Pole mount kit, VESA flat-wall, 200 mm W x 100 mm H, 6 fasteners (M4 x 8 mm) for 2-6 inch pole |
| 75856 | Pole mount kit, 4-in flange style (24-in wide frame use with 4-8 in dia. pole) |
| 208807 | Sunshade, 8-in |
| 209118 | Wireless LAN, RS-232/Wi-Fi interface 802.11 a/b XPico module |
| 212753 | Wireless interface, pair of ConnexLink radios transceiver kit and mount |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 523. Specifications are subject to change without notice.
