Rice Lake · Indicators / Controllers

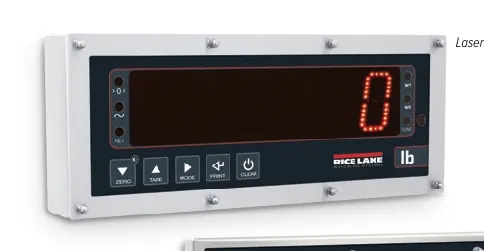

LaserLT-60 and LaserLT-100
Large-display Digital Weight Indicators
Standard features
- LED Display
- Integrated five-key waterproof keypad
- Includes removable back wall mount bracket
- Up to four independent scales or four load cell inputs
- Quick menu for real and theoretical calibration
- Up to three calibration linearization points
- Semi-automatic and preset tare
- Two digital outputs for 13 setpoint types with timers to enable on and delay period
- Two digital inputs for operating keys remotely
Specifications
- Power
- AC voltage: 100 to 240 VAC DC voltage: 12 to 24 VDC
- Excitation Voltage
- 5 VDC, 120 mA, 16 × 350 ohm
- Analog Signal Input Range
- ± 39 mV
- Analog Signal Sensitivity
- 0.03 µV/graduation minimum 0.3 µV/graduation recommended
- A/D Sample Rate
- Four channel A/D up to 200 Conv./sec. auto select
- Resolution
- Internal: 1,500,000 counts Display: 800,000
- Digital I/O
- Two inputs: 12/24 VDC Two outputs: 150 mA 48 VAC/150 mA 60 VDC
- Communication Ports
- (1) RS-232, (1) RS-485
- Display
- 6-digit, 7-segment discrete red LED lamps, single width 2.4 in (60 mm) or 4 in (100 mm) digit Decimal/comma indication in any position Annunciators for NT, Stability, COZ 5 levels of intensity
- Maximum Viewing Distance
- LaserLT-60: 2.4 in digit 75 ft (25 m) LaserLT-100: 4 in digit 100 ft (30 m)
- Keys/Buttons
- Five key, Zero (Down), Tare (Up), Mode (Right), Print (Enter), C (On/Off)
- Temperature
- -40° F to 120° F (-40° C to 49° C)
- Rating/Material
- 304 stainless steel, IP68
- Weight
- 10 lb (4.5 kg)
- Warranty
- One-year limited
- Approvals
- NTEP CC 20-046 III/IIIL 10,000 d Measurement Canada AM-6165C III/IIIL 10,000 d CE Marked
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 197453 | LaserLT-60, indicator with weighing functionality 2.4 in (60 mm) LED |
| 197454 | LaserLT-100, indicator with weighing functionality 4.0 in (100 mm) LED |
Options & accessories (2)
| 185256 | Mount bracket, 2 tilting side brackets for LaserLT-100 |
| 185258 | Visor for LaserLT-100 |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 525. Specifications are subject to change without notice.
