Standard features

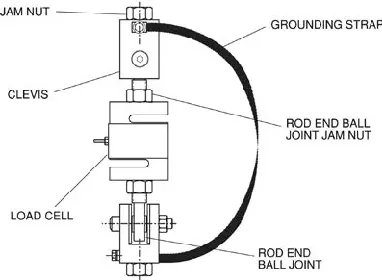

- For coupling isolators with load cells and steelyard rods
- Supplied with jam nuts
- Stainless steel Safe Load*

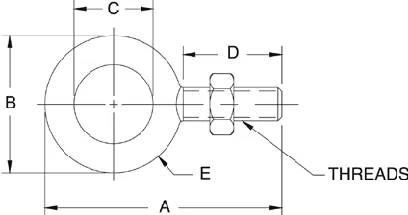

Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 17722 | 3/8-16 UNC 2.50 in 600 lb |
| 17726 | 1/2-20 UNF 2.50 in 600 lb |
| 17725 | 1/2-13 UNC 2.00 in 3,000 lb |
| 17723 | 3/8-24 UNF 2.50 in 600 lb |
| 17728 | 1/2-13 UNC × 1/2-20 UNF 2.50 in 600 lb |
| 17732 | 1/4-20 UNC 1.12 in 250 lb |
| 33561 | - - 2.00 in 1/4-28 UNF 1/4-28 UNF |
| 33562 | 0.94 in 0.94 in 2.00 in 1/4-28 UNF 1/4-20 UNC |
| 33563 | 0.92 in 1.02 in 2.06 in 1/4-28 UNF 3/8-24 UNF |
| 33564 | 0.94 in 0.94 in 2.00 in 1/4-28 UNF 3/8-16 UNC |
| 33567 | 1.06 in 1.06 in 2.25 in 1/4-28 UNF 1/2-13 UNC |
| 33568 | - - 2.00 in 3/8-24 UNF 3/8-24 UNF |
| 33569 | 0.91 in 0.91 in 2.00 in 3/8-16 UNC 3/8-24 UNF |
| 33570 | 1.06 in 1.06 in 2.25 in 3/8-24 UNF 1/2-13 UNC |
| 33571 | 1.31 in 1.31 in 2.75 in 1/2-13 UNC 5/8-11 UNC |
| 33572 | 0.87 in 0.87 in 2.00 in 1/2-13 UNC 1/2-20 UNF |
| 33573 | - - 2.06 in 1/2-20 UNF 1/2-20 UNF |
| 33574 | 1.31 in 1.31 in 2.75 in 1/2-20 UNF 5/8-11 UNC |
| 33575 | 1.31 in 1.31 in 3.00 in 3/4-16 UNF 3/4-10 UNC |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 427. Specifications are subject to change without notice.
