Standard features

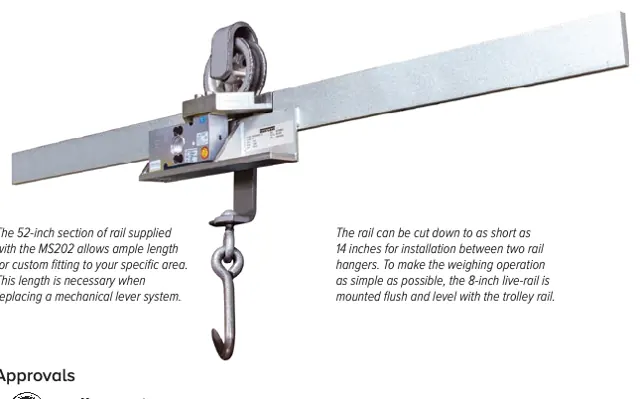

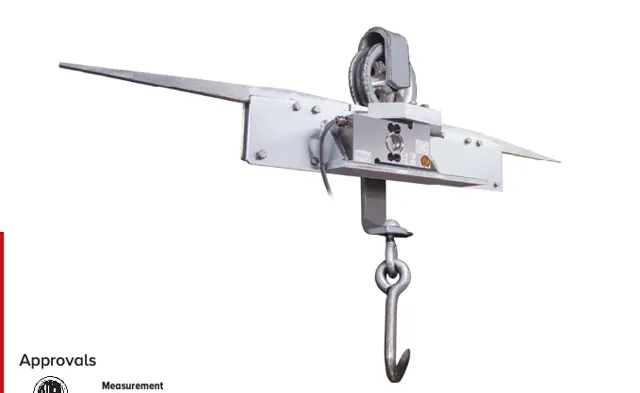

- 8-in live-rail designed to weigh one trolley at a time
- 750 lb × 0.5 lb (3/8 in rail)
- 1500 lb × 0.5 lb (1/2 in rail)
- Available for rail sizes 3/8 × 2-1/2 in or 1/2 × 2-1/2 in
- Requires less than 41 in of straight rail to install (22 inches between tail hangers)
- Nickel-plated mild steel and stainless steel construction available
- High accuracy, stainless steel load cell
- 20 ft of cable
- Slightly recessed live-rail for the trolley roller provides stable weighments
Specifications
- Construction
- A36 mild steel construction with electroless nickel (EN) plating or 304 series stainless steel construction 304 series stainless steel hardware.
- Load Cell Construction
- Stainless steel
- Bridge Resistance
- 750 lb: 350 ohm 1,500 lb: 1,000 ohm
- Rated Output
- 2 mV/V
- Nonlinearity
- 0.03% full scale
- Warranty
- One-year limited
- Approvals
- NTEP 90-003 Class III, 3,400d (Max) Measurement Canada: AM-6244 Class III, 3,400d (1,500 lb/680 kg) stainless steel only
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 19743 | 750 lb x 0.5 lb, nickel-plated 38 lb |
| 213006 | 1,500 lb x 0.5 lb, nickel-plated 40 lb |
| 213007 | 1,500 lb x 0.5 lb, stainless steel 40 lb |
Options & accessories (4)
| 16984 | Additional operating manual |
| 167585 | |
| 227092 | |
| 216728 | Configuration and Monorail calibration |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 760. Specifications are subject to change without notice.
