MSI-8000HD

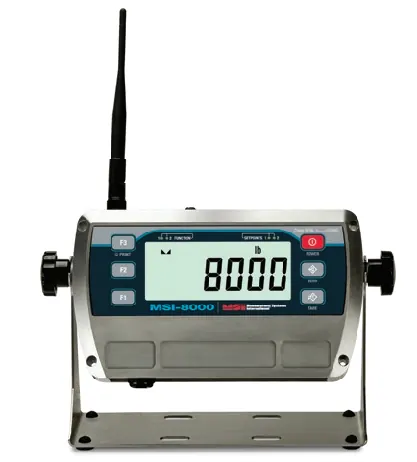

Digital Weight Indicator/RF Remote Display
Standard features
- Compatible with all ScaleCore™ based products
- LCD display
- Time and date
- Membrane keypad for remote-control functionality
- User-definable function keys for added versatility
- Swivel tilt stand
Specifications
- Power
- 90 to 267 VAC, 9 to 36 VDC, 18 to 72 VDC, 120 to 300 VDC Optional battery power module available
- Excitation Voltage
- 4.8 V current limited and over-voltage protected
- RF Remote Channels
- Up to four remote sensors, monitored individually, in pairs or sum all (non-A/D version only)
- Service Counters
- A/D version only
- A/D Inputs
- Two independent or summing load cell inputs
- Filtering
- Off, Low, Hi-1, Hi-2
- RF Radio Link
- 2.4 GHz 802.15.4 Compatible with all ScaleCore™ based products, including: MSI-7300 Dyna-Link 2, MSI-3460 Challenger 3, MSI-4260 Port-A-Weigh, MSI-7000 and MSI-7001
- RF Effective Range
- Typically 100 to 300 ft, line of sight; for longer range consult factory
- Communication Ports
- Dual RS-232 communication ports
- Annunciators
- Stable, COZ, Peak, kg, kN, lb, M, Ton, Setpoint, Function LEDs Channels: 1, 2, 3, 4, TTL
- Display
- Six-digit 1.0 in (26.4 mm) LCD
- Units Displayed
- Pounds, kilograms, tons, metric tons, kilonewtons
- Keys/Buttons
- On/Off, zero (100%), tare, print, and two user- defined keys for the following functions: peak hold, high resolution, total, view total, net/gross, units switching
- Rating/Material
- Enclosure: NEMA Type 4, IP66 milled anodized aluminum with O-ring gaskets
- Temperature
- Certified: 14 °F to 104 °F (-10º °C to 40 °C) Operating: -4 °F to 140 °F (-20 °C to 60 °C)
- Warranty
- One-year limited
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 158427 | Indicator, dual channel, 85 to 265 VAC |
| 158428 | Indicator, dual channel, internal battery |
| 160478 | Indicator, dual channel, 7 to 36 VDC |
| 159380 | Indicator, dual channel, 9 to 36 VDC |
| 158425 | Indicator, RF, dual channel, 85 to 265 VAC |
| 158426 | Indicator, RF, dual channel, internal battery |
| 160477 | Indicator, RF, dual channel, 7 to 36 VDC |
| 159378 | Indicator, RF, dual channel, 9 to 36 VDC |
| 160476 | Remote display, RF, 7 to 36 VDC |
| 159376 | Remote display, RF, 9 to 36 VDC |
Options & accessories (13)
| 155173 | MSI-8000HD spare tilt stand option kit |
| 155193 | MSI-8000HD Ethernet TCP/IP option kit wired |
| 162178 | Antenna extension kit, 6 ft |
| 148624 | MSI-8000HD serial RS-232 cable |
| 158779 | MSI-8000HD two each coil relay option kit, 250 VAC/30 VDC 5 A or 100 VDC 0.4 A |
| 158781 | MSI-8000HD two each solid state relay option kit, 200 V pk 0.9 A |
| 149549 | Universal 115/230 VAC 50/60 Hz (NA plug standard) battery charger for MSI-8000HD battery |
| 149550 | Universal 115/230 VAC 50/60 Hz (international plugs) battery charger for MSI-8000HD battery |
| 171203 | Audible alarm kit |
| 176963 | Serial print cable (for GoDex printer) |
| 172490 | Expanded relay kit, four-channel, 12 A 5 V, latching relays |
| 172492 | Expanded relay kit, four-channel, 12 A 5 V, momentary relays |
| 172495 | Expanded relay kit, eight-channel, 12 A 5 V, momentary relays |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 799. Specifications are subject to change without notice.
