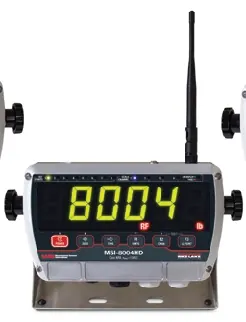

MSI-8004HD
Digital Weight Indicator/RF Remote Display
Standard features
- Multicolor LED display
- Backlit membrane keypad for user functioning and controls
- Tilt bracket included
- Color changing display (via setpoints)
Specifications
- Power
- 90 to 267 VAC, 9 to 36 VDC, 18 to 72 VDC, 120 to 300 VDC
- Excitation Voltage
- 4.8 V current limited and over-voltage protected
- Functions
- Peak hold, high resolution, total, view total net/gross, units switching
- Units
- Pounds and kilograms
- Channels
- 1, 2, 3, 4, TTL
- RF Remote Channels
- Up to 4 remote sensors, monitored individually, in pairs or sum all (non-A/D version only) (when used with TranSend™)
- Service Counters
- A/D version only
- A/D Inputs
- Two independent or summing load cell inputs
- Relays
- Two 5 V coil, 250 VAC, 5 A relays
- Filtering
- Off, Low, Hi-1, Hi-2
- RF Radio Link
- 2.4 GHz 802.15.4, optional second channel for Serial RF, 802.11 Wi-Fi
- RF Effective Range
- Typically 100 to 300 ft, line of sight; for longer range consult factory Communication Ports Two RS-232 hard wired communication ports
- Annunciators
- Stable, COZ, BT, RF, TTL, NET, kg, lb
- Display
- Six-digit, 1.5 in (38 mm) LED display with red/green/ orange coloring
- Keys/Buttons
- On/Off, Zero, Tare, Print and two user-defined keys
- Temperature
- Certified: 23 °F to 104 °F (-5 °C to 40 °C) Operating: -40 °F to 140 °F (-40 °C to 60 °C)
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 221177 | AC Power (85 to 264 VAC), multi-color display, RF |
| 221183 | AC Power (85 to 264 VAC), multi-color display, RF, Instant power-on |
| 221179 | DC Power (9 to 36 VDC), multi-color display, RF |
| 221181 | DC Power (5 VDC), multi-color display, RF |
| 221176 | AC Power (85 to 264 VAC), multi-color display, RF |
| 221180 | External battery (Li-ion 5V/3A), multi-color display, RF |
Options & accessories (9)
| 162178 | Antenna extension kit, 6 ft |
| 197013 | Antenna extension kit, 20 ft |
| 199105 | Audible alarm not compatible with battery versions |
| 22436 | Cable assembly, DB9F to bare wires, 6 in, Gen 1 |
| 148624 | Cable assembly, RS232 DB9, Gen 2 |
| 183437 | Battery, 5V Li-ion battery with USB power ports. Output 5 V/3.0 A per port (6.0 A max) rate, 2 |
| 187425 | 8004 option kit, Wi-Fi with TNC connector |
| 223594 | Option kit, Dual Analog output: 4/20mA, 0-5 VDC, 0-10VDC. +/- 5VDC, +/-10VDC |
| 224817 | Ethernet (forward module only) |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 801. Specifications are subject to change without notice.
