Standard features

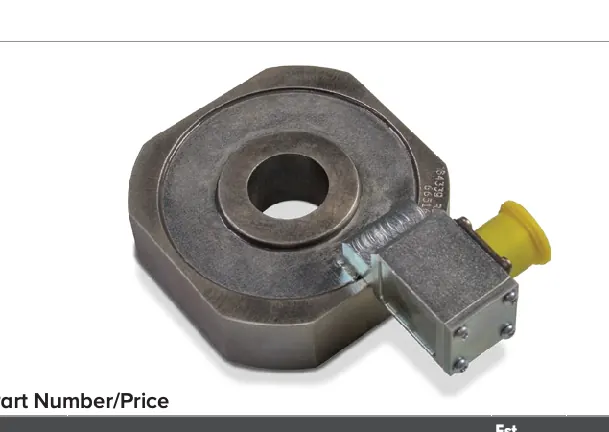

- Designed to be placed above the trunnion of a load block, this integrated low-profile load cell eliminates headroom loss
- Off-axis compensation (Contact MSI for application consultation)
Specifications
- Accuracy (Static Load)
- 0.5 to 1% system accuracy of rated capacity
- Rating/Material
- 4340 alloy steel, zinc plated IP67
- Resistance
- 700 ohm
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 160651 | 10,000 lb/5,000 kg capacity 5 lb |
| 163595 | 20,000 lb/10,000 kg capacity 10 lb |
| 163596 | 40,000 lb/20,000 kg capacity 20 lb |
| 163829 | 60,000 lb/30,000 kg capacity 30 lb |
| 163597 | 80,000 lb/40,000 kg capacity 34 lb |
| 163598 | 100,000 lb/50,000 kg capacity 38 lb |
| 159550 | 120,000 lb/60,000 kg capacity 60 lb |
| 163599 | 160,000 lb/80,000 kg capacity 105 lb |
| 163600 | 200,000 lb/100,000 kg capacity 215 lb |
Options & accessories (7)
| 165978 | Load cell to MSI-7001 interface cable, 6.5 ft |
| 165979 | Load cell to MSI-7001 interface cable, 10 ft |
| 165980 | Load cell to MSI-7001 interface cable, 16 ft |
| 165989 | Load cell to MSI-7001 interface cable, 20 ft |
| 165990 | Load cell to MSI-7001 interface cable, 25 ft |
| 165991 | Load cell to MSI-7001 interface cable, 32 ft |
| 55417 | Connector, cable plug with strain relief |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 795. Specifications are subject to change without notice.
