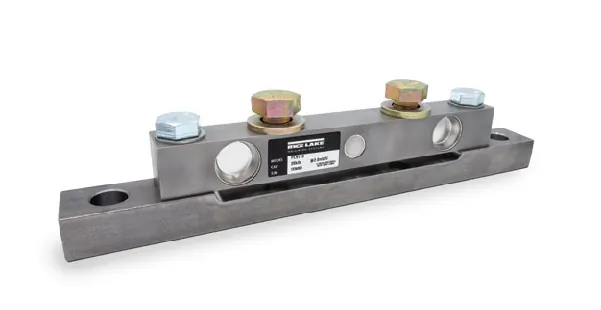

Standard features
- Capacities from 2,000 to 20,000 lb (per module)
- IP68 rated load cell
- Single-piece bearing plate, allowance to bolt or welded into position
- All capacities maintain the same dimensions
- Spherical washer securement for load cell
- Rigid securement of equipment
- Low profile (2.25 in)

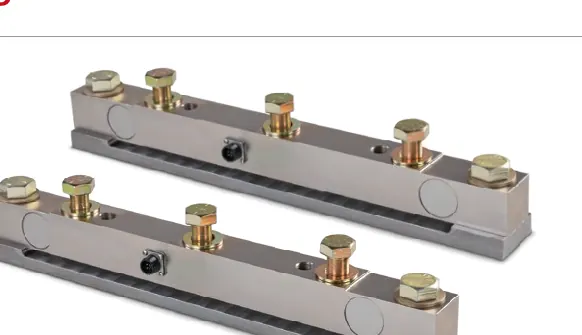

- Stainless steel module available upon request RAEV EC-O
- 25,000 lb capacity per module
- 50 ft cable lengths
- Single-piece bearing plate, through-hole mounting
- Rigid securement for upper assembly
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 208297 | Kit, OnBoard PL9110-2K (single module kit) |
| 208299 | Kit, OnBoard PL9110-5K (single module kit) |
| 208300 | Kit, OnBoard PL9110-10K (single module kit) |
| 208301 | Kit, OnBoard PL9110-20K (single module kit) |
| 190901 | Kit, Onboard, TwistLock (single module kit) |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 768. Specifications are subject to change without notice.
