Interface · Indicators / Controllers

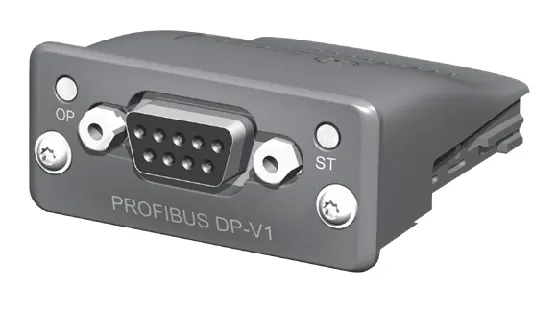

PROFIBUS® DP Interface
880™/882D/882IS/1280™
Standard features
- DP intelligent device
- Standard GSD file download from product page
- Selectable addresses
- Up to 12 Mbps baud rate
- Onboard diagnostic LEDs
- PROFINET communication adapter
- 100 Mbps baud rate
- Works as an I/O device on the PROFINET network
- PROFIenergy compliant
Specifications
- Power
- 3.3 VDC, 250 mA
- Connector Type
- DB9, pluggable
- Diagnostic LEDs
- Module status and network status
- Dimensions
- 2.00 × 1.90 × 0.75 in (52 × 49 × 19 mm)
- Temperature
- Operating: -40 °F to 158 °F (-40 °C to 70 °C)
- Configuration
- GSDML file
- IP Address Range
- Full IP address range DHCP
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 179160 | PROFINET interface kit for 880 indicator (single port) 1 lb |
| 205567 | PROFINET interface kit for 880 indicator (dual port) 1 lb |
| 165794 | PROFINET interface kit for 1280 indicator (single port) 1 lb |
| 190532 | PROFINET interface kit for 882D and 882IS indicators 1 lb |
Options & accessories (1)
| 156784 | Additional operating manual |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 552. Specifications are subject to change without notice.
