Interface · Indicators / Controllers

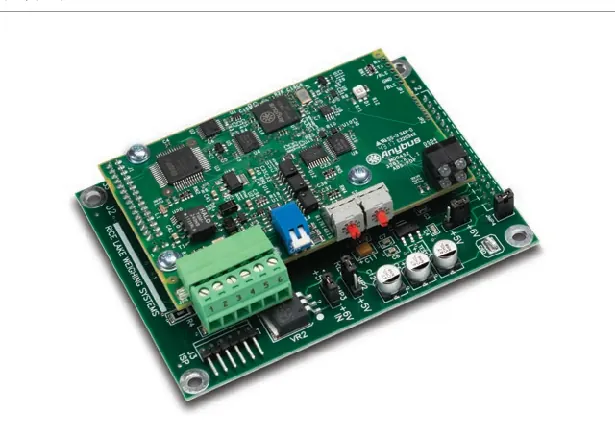

PROFIBUS® DP Interface
720i™/920i®
Standard features
- DP intelligent device
- Standard GSD file download from product page
- 128 selectable addresses
- Auto baud rate up to 56 K
- Registered with PROFIBUS Trade Organization
- Onboard diagnostic LEDs
- CE marked and UL conformance
- Control protocols
Specifications
- Power
- 5 VDC, 350 mA
- Fieldbus Interface
- Pluggable screw connector
- Diagnostic LEDs
- Module status and network status
- Dimensions
- 2.00 × 1.90 × 0.75 in (51.8 × 48 × 19 mm)
- Temperature
- Operating: 14 °F to 158 °F (-10 °C to 70 °C)
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 68540 | PROFIBUS DP interface kit (internal), for 720i/920i indicators 3 lb |
Options & accessories (2)
| 69948 | Additional operating manual |
| 187907 | Additional operating manual |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 548. Specifications are subject to change without notice.
