Rice Lake · Junction Boxes / Simulators

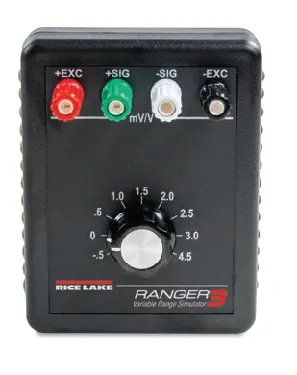

Ranger 3
Variable Range Simulator
Standard features
- ABS plastic case, weighs less than 1 lb
- Fixed rotary switch, -0.5 mV/V to 4.5 mV/V in nine steps of 0.5 mV/V per step
- 10-turn vernier knob with locking graduated dial
- Vernier selection of four ranges: Off, Fine, Medium and Coarse
- Ideal tool for calibrating indicator A/D offset and gain setting
- A/D calibration steps for -0.5 mV/V for offset and 4.5 mV/V for gain
- Used in testing, troubleshooting and calibrating digital weight indicator
- Ideal tool for calibrating the indicator A/D offset and gain setting
- Used in troubleshooting and testing systems
Specifications
- Range
- -0.5 mV/V to 4.5 mV/V
- Impedance
- 350 ohm nominal
- Nonlinearity
- Less than 0.02%
- Connectors
- Binding posts suitable for banana plug or 14-gauge wire
- Temperature Coefficient
- ±5 ppm/ °C
- Dimensions
- (L × W × H) 4.5 × 3.5 × 1.25 in
- Warranty
- One-year limited
- Fixed Steps
- -0.5 mV/V to 4.5 mV/V
- Vernier
- Variable range: up to 0.5 mV/V, up to 1 mV/V, up to 1.5 mV/V
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 68031 | Ranger 5 simulator |
Options & accessories (1)
| 21116 | Cable (4 ft) with banana plugs |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 611. Specifications are subject to change without notice.
