Standard features
- Interior mounting on non-metallized windshield
- Impact resistant, molded plastic case
- Slim profile
- Non-battery for extended service life (AT5402)
- Dual-frequency (915 and 2450 MHz, AT5406) RFID Transportation Tags
- Harsh environment durability
- Factory sealed case
- Non-battery for extended service life (AT5412)
- Dual-frequency (915 and 2450 MHz, AT5414)
Specifications
- Power Source
- AT5402: Beam-powered AT5406: Lithium battery
- Frequency Range
- AT5402: 902 to 928 MHz AT5406: 902 to 928 MHz/2425 to 2475 MHz
- Read Range
- AT5402: 5 to 10 ft (1.5 to 3 m) AT5406: 5 to 35 ft (1.5 to 11 m)
- Polarization
- Parallel with longer side
- Data Capacity
- Up to 10 alphanumeric characters (60 available bits) or Wiegand 26 to 54 bit formats
- Service Life
- AT5402: >10 years AT5406: Eight-year lithium battery (typical life)
- Case Material
- Weatherproof, polycarbonate alloy, UV stabilized
- Mounting Surface
- Interior: Non-metallic windshield
- Mounting Method
- Semi-permanent mounting: Double-sided tape Removable mounting: Adhesive-backed hook- and-loop material attached to the tag and vehicle windshield
- Temperature
- Operating: -40 °F to 185 °F (-40 °C to 85 °C)
- Dimensions
- (L × W × H) AT5402: 3.60 × 2.30 × 0.27 in (92 × 59 × 7 mm) AT5406: 4.50 × 2.50 × 0.70 in (114 × 64 × 18 mm)
- Weight
- AT5402: 1.4 oz. (40 g) AT5406: 3.5 oz. (99 g)
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|

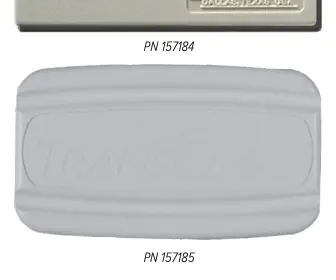

| 157184 | AT5402 windshield tag beam power |
| 157185 | AT5406 windshield tag with battery |
| 159518 | Programming fee |
| 86399 | AT5412 transportation tag 1/2 frame beam power |
| 157188 | AT5414 transportation tag 1/2 frame with battery |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 30. Specifications are subject to change without notice.
