Rice Lake · Load Cells / Weigh Modules

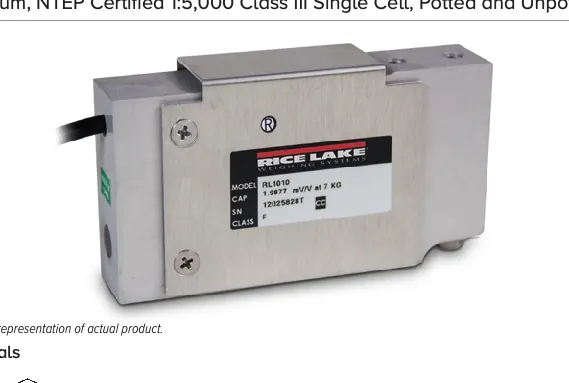

RL1010
Aluminum, NTEP Certified 1:5,000 Class III Single Cell, Potted and Unpotted, IP65/IP67
Specifications
- Full Scale Output
- 2.0 mV/V
- Output Resistance
- 350 (± 3) ohm, nominal
- Input Resistance
- 415 (± 15) ohm
- Material/Finish
- Anodized aluminum
- Temperature
- Compensated: 14 °F to 104 °F (-10 °C to 40 °C) Operating: 0 °F to 150 °F (-18 °C to 65 °C)
- Seal Type
- Potted: IP67 Unpotted: IP65
- Safe Overload
- 150% at center of loading point, full scale
- Rated Excitation
- 5 to 10 VDC (15 V maximum)
- Combined Error
- 0.02% full scale
- Insulation Resistance
- 5,000 megohm
- Deflection at Capacity
- 0.015 in
- Cable Length
- Potted: 10 ft Unpotted: 3 ft
- Cable Diameter
- 0.200 in PVC jacket
- Cable Color Code
- Green +Excitation Black –Excitation Red +Signal White –Signal Blue +Sense Brown –Sense
- Max Platform Size
- 15.75 × 15.75 in
- Warranty
- Two-year limited
