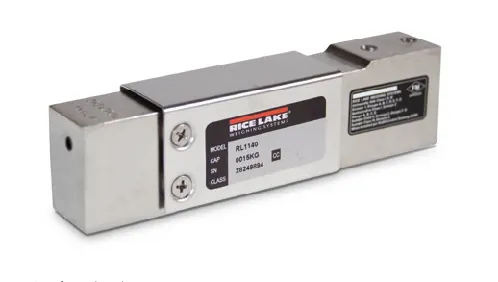

RL1140

Specifications

Full Scale Output

2.0 mV/V

Output Resistance

350 (± 5) ohm, nominal

Input Resistance

383 (± 15) ohm

Material/Finish

Stainless steel

Temperature

Operating: 14 ° F to 104 °F (-10 °C to 40 °C) Compensated: 14 ° F to 104 °F (-10 °C to 40 °C)

Seal Type

Environmentally sealed, IP65

Safe Overload

200% at center loading point, full scale

Rated Excitation

5 to 10 VDC (15 V maximum)

Combined Error

0.02% full scale

Insulation Resistance

2,000 megohm

Deflection at Capacity

0.4 mm

Cable Length

10 ft

Cable Diameter

0.200 in PVC jacket

Cable Color Code

Green +Excitation Black –Excitation Red +Signal White –Signal Blue +Sense Brown –Sense

Max Platform Size

15.75 × 15.75 in

Warranty

Two-year limited
