Rice Lake · Load Cells / Weigh Modules

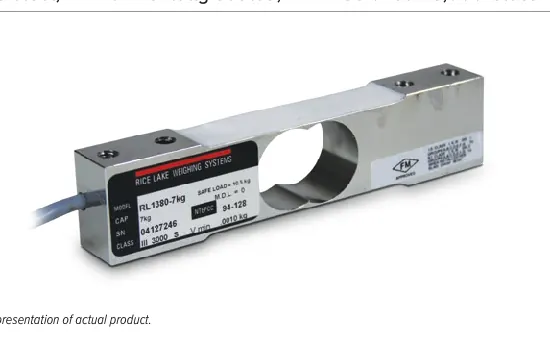

RL1380
Stainless Steel, Environmentally Sealed, NTEP Certified 1:3,000 Class III Single Cell, IP67
Specifications
- Full Scale Output
- 2.0 mV/V
- Output Resistance
- 359 (± 10) ohm
- Input Resistance
- 390 (± 15) ohm
- Material/Finish
- Stainless steel
- Temperature
- Compensated: 14 °F to 104 °F (-10 °C to 40 °C) Operating: 0 °F to 150 °F (-18 °C to 65 °C)
- Seal Type
- Environmentally sealed, IP67
- Safe Overload
- 150% full scale
- Rated Excitation
- 5 to 10 VDC (15 V maximum)
- Combined Error
- 0.03% full scale
- Insulation Resistance
- 5,000 megohm
- Deflection at Capacity
- <0.4 mm full scale
- Cable Length
- 10 ft
- Cable Diameter
- 0.190 in Polyurethane jacket
- Cable Color Code
- Green +Excitation Black –Excitation White +Signal Red –Signal Yellow Shield
- Max Platform Size
- 15.75 × 15.75 in
- Warranty
- Two-year limited
