Rice Lake · Load Cells / Weigh Modules

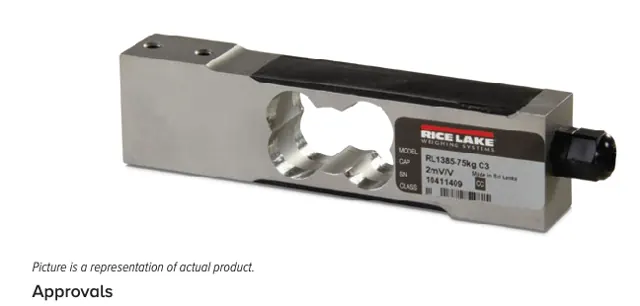

RL1385
Stainless Steel, Environmentally Sealed, NTEP Certified 1:4,500 Class III Single Cell, IP67
Specifications
- Full Scale Output
- 2.0 mV/V
- Output Resistance
- 330 (± 25) ohm
- Input Resistance
- 390 (± 20) ohm
- Material/Finish
- Stainless steel
- Temperature
- Operating: 0 °F to 150 °F (-18 °C to 65 °C)
- Seal Type
- Environmentally sealed, IP67
- Safe Overload
- 200% full scale
- Rated Excitation
- 5 VDC (15 V maximum)
- Combined Error
- 0.02% full scale
- Insulation Resistance
- 5,000 megohm
- Cable Length
- 10 ft
- Cable Diameter
- 0.196 in Polyurethane jacket
- Cable Color Code
- Green +Excitation Black –Excitation White +Signal Red –Signal Yellow Shield
- Max Platform Size
- 18 × 18 in
- Warranty
- Two-year limited
- Approvals
- NTEP 00-125 FM
