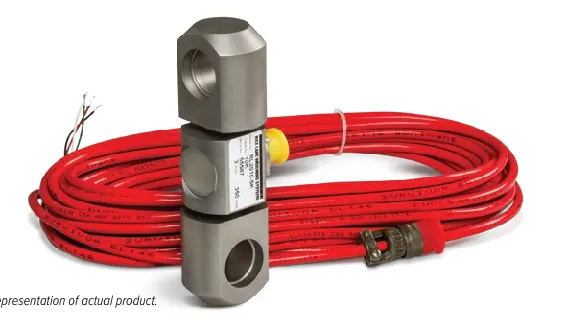

RL2010

Specifications

Full Scale Output

3.0 (± 0.1%) mV/V

Bridge Resistance

350 ohm, nominal

Material/Finish

Stainless steel

Temperature

Operating: 0 °F to 150 °F (-18 °C to 65 °C)

Seal Type

Environmentally sealed, IP67

Safe Overload

150% full scale

Rated Excitation

5 to 10 VDC (15 V maximum)

Linearity

0.05% full scale

Repeatability

0.03% full scale

Insulation Resistance

5,000 megohm

Cable Length

40 ft

Cable Diameter

0.25 in Polyurethane jacket with connector

Cable Color Code

Green +Excitation Black –Excitation White +Signal Red –Signal

Warranty

Two-year limited
