Rice Lake · Load Cells / Weigh Modules

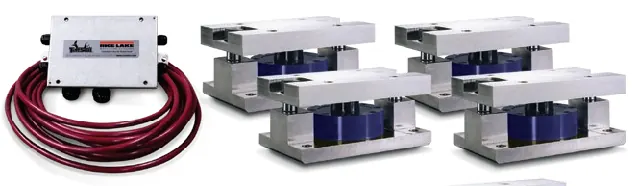

RL2200 Series
Mild Steel, Weigh Module Kit
Standard features
- Capacities (per module): 2,500 to 50,000 lb
- Low-profile design
- Self-centering in all directions, able to withstand excessive side loads
- Self-checking assembly
Specifications
- Full Scale Output
- 4.0 mV/V 2.0 mV/V (2,500 lb)
- Bridge Resistance
- 350 ohm nominal
- Material/Finish
- High-alloy steel, painted
- Temperature
- Compensated: 15 °F to 115 °F (-9 °C to 46 °C)
- Seal Type
- Environmentally sealed
- Safe Overload
- 150% full scale
- Rated Excitation
- 5 to 10 VDC (20 V maximum)
- Nonlinearity
- 0.05% full scale
- Hysteresis
- 0.03% full scale
- Insulation Resistance
- 5,000 megohm
- Cable Length
- 30 ft
- Cable Color Code
- Red +Excitation Black –Excitation White +Signal Green –Signal
- Warranty
- Two-year limited
