Rice Lake · Load Cells / Weigh Modules

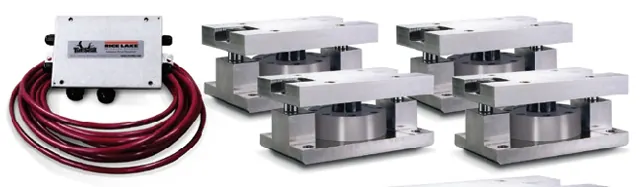

RL2200SS Series
Stainless Steel, Weigh Module Kit
Standard features
- Three or four RL2200 stainless steel mounting assemblies with RL2200SS stainless steel, hermetically sealed, compression disk load cells
- One JB4SS NEMA Type 4X stainless steel signal trim junction box
- 25 ft of hostile environment EL147HE SURVIVOR® load cell cable
- Medium- to heavy-capacity tank, hopper or vessel weighing
- Belt or roller conveyors
- Scale platforms and screw feeders
Specifications
- Full Scale Output
- 4.0 mV/V 2.0 mV/V (2,500 lb)
- Bridge Resistance
- 350 ohm nominal
- Material/Finish
- Stainless steel
- Temperature
- Compensated: 15 °F to 115 °F (9 °C to 46 °C)
- Seal Type
- Hermetically sealed, IP66/68
- Safe Overload
- 150% full scale
- Rated Excitation
- 5 to 10 VDC (20 V maximum)
- Nonlinearity
- 0.05% full scale
- Hysteresis
- 0.03% full scale
- Insulation Resistance
- 5,000 megohm
- Cable Length
- 30 ft
- Cable Color Code
- Red +Excitation Black –Excitation White +Signal Green –Signal
- Warranty
- Two-year limited
