Rice Lake · Load Cells / Weigh Modules

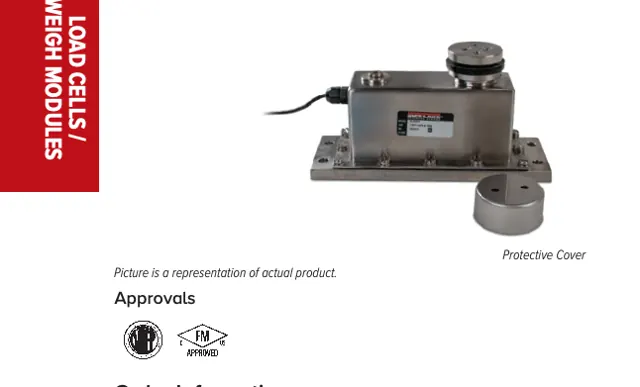

RL260FD
Fluid Damped, Stainless Steel, Environmentally Sealed, NTEP Certified Single Cell 1:3,000, IP68
Specifications
- Full Scale Output
- 2.0 mV/V
- Output Resistance
- 350 (± 3) ohm
- Input Resistance
- 400 (± 20) ohm
- Material/Finish
- Stainless steel
- Temperature
- Compensated: 14 °F to 104 °F (-10 °C to 40 °C) Operating: 0 °F to 150 °F (-18 °C to 65 °C)
- Seal Type
- Environmentally sealed, IP68
- Safe Overload
- 200% of full scale
- Rated Excitation
- 5 to 10 VDC
- Combined Error
- 0.017% full scale
- Insulation Resistance
- > 5,000 megohm
- Cable Length
- 5 m
- Cable Color Code
- Green +Excitation Black –Excitation Red +Signal White –Signal Blue +Sense Yellow -Sense
- Warranty
- Two-year limited
- Approvals
- NTEP 20-045 cFMus
